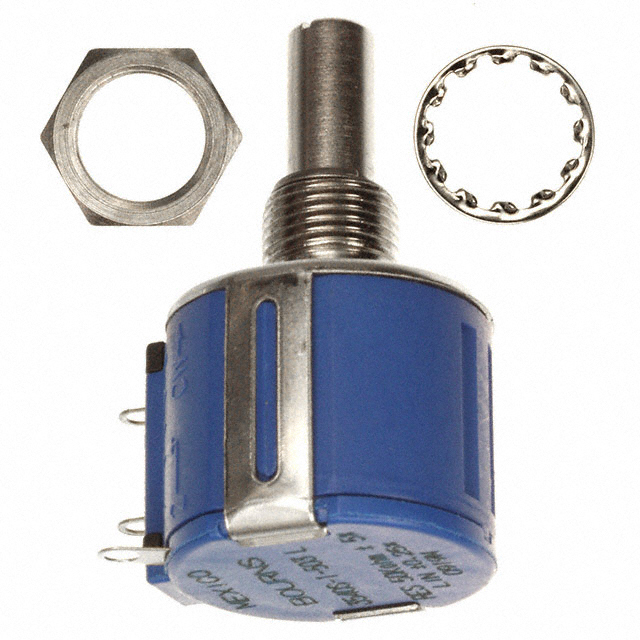

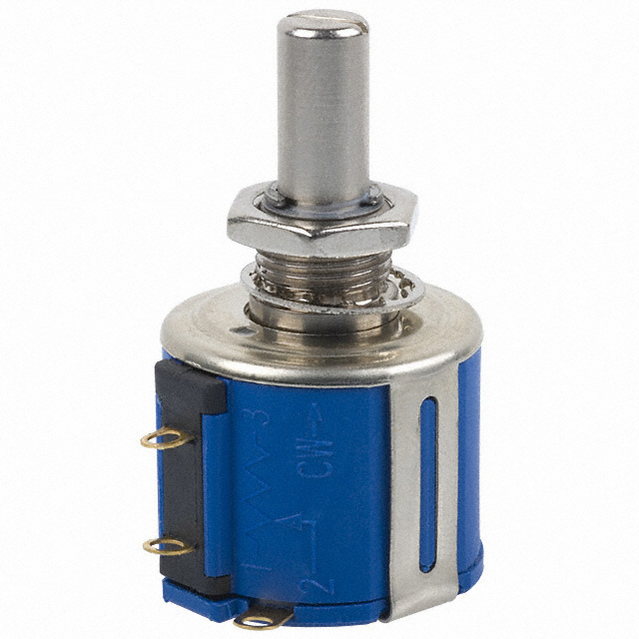

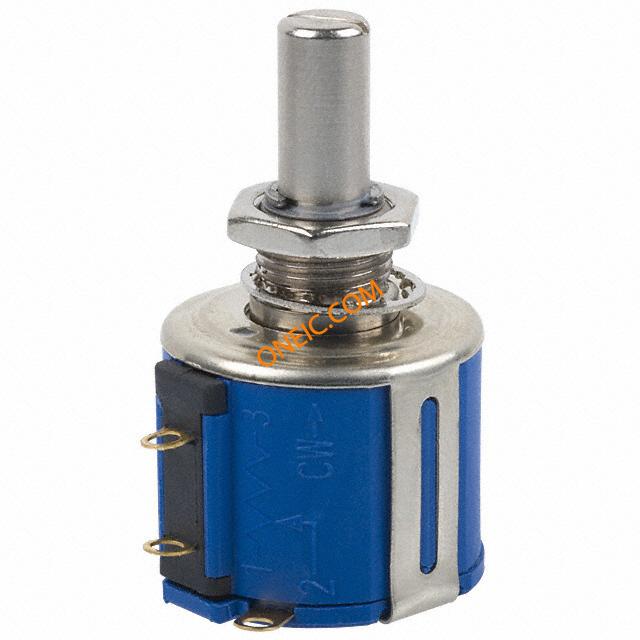

Res Wirewound POT 2KΩ 5% 2W 10Elec/10MechTurn 6.34mm 22.23 X 39.67 X 26.99mm Solder Lug Panel Mount
2k Ohm 1 Gang Linear Panel Mount Potentiometer None 10 Kierros Wirewound 2W Solder Lug
得捷:
POT 2K OHM 2W WIREWOUND LINEAR
艾睿:
Res Wirewound POT 2K Ohm 5% 2W 10Elec/10MechTurn 6.34mm 22.23 X 39.67 X 26.99mm Solder Lug Panel Mount
Chip1Stop:
Res Wirewound POT 2K Ohm 5% 2W 10Elec/10MechTurn 6.34mm 22.23 X 39.67 X 26.99mm Solder Lug Panel Mount
Electro Sonic:
Res Wirewound POT 2K Ohm 5% 2W 10Elec/10MechTurn 6.34mm 22.23 X 39.67 X 26.99mm Solder Lug Panel Mount
额定电压DC 447 V
容差 ±5 %
额定功率 2 W
电阻 2 kΩ
阻值偏差 ±5 %
安装方式 Solder Lug, Panel

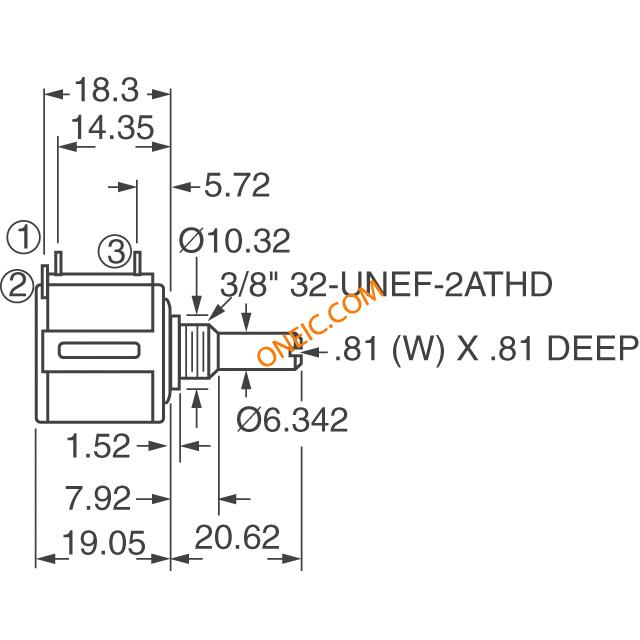

封装 Round - 0.875" Dia x 0.750" H 22.23mm x 19.05mm
长度 19.1 mm
直径 22.2 mm
封装 Round - 0.875" Dia x 0.750" H 22.23mm x 19.05mm
工作温度 -55℃ ~ 125℃
温度系数 ±50 ppm/℃
产品生命周期 Obsolete
包装方式 Tray
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2013/06/20
