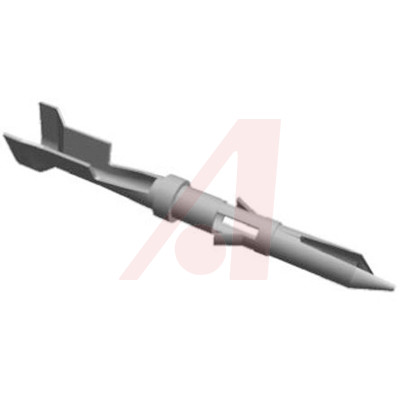

350967-1

TE Connectivity 微型矩形 MR 触点微型矩形 MR 触点由磷青铜制成，引脚直径为 1.73mm。 微型矩形 MR 触点提供开口销或标准插座。**补充数据** --- **RS 库存号** | **制造商部件号** | **类型** | **电线尺寸** | **绝缘直径** | **电镀** 720-2458 | 350967-1 | 带电开口销 | 26 - 18 AWG | 1.27 - 2.92 mm | 预镀锡 680-0875 | 640579-2 | 带电开口销 | 26 - 24 AWG | 0.635 - 1.27 mm | 可选择镀金 680-1874 | 640545-2 | 带电开口销 | 26 - 18 AWG | 1.27 - 2.92 mm | 可选择镀金 745-5839 | 794001-2 | 标准插座 | 26 - 24 AWG | 0.635 - 1.27 mm | 可选择镀金 680-1893 | 641300-1 | 标准插座 | 26 - 18 AWG | 1.27 - 2.92 mm | 预镀锡 680-1896 | 641300-2 | 标准插座 | 26 - 18 AWG | 1.27 - 2.92 mm | 可选择镀金 ### TE Connectivity 微型矩形 MR

微型矩形 MR 触点

微型矩形 MR 触点由磷青铜制成，引脚直径为 1.73mm。 微型矩形 MR 触点提供开口销或标准插座。

### TE Connectivity 微型矩形 MR

欧时:
### TE Connectivity 微型矩形 MR 触点微型矩形 MR 触点由磷青铜制成，引脚直径为 1.73mm。 微型矩形 MR 触点提供开口销或标准插座。**补充数据** --- **RS 库存号** | **制造商部件号** | **类型** | **电线尺寸** | **绝缘直径** | **电镀** 720-2458 | 350967-1 | 带电开口销 | 26 - 18 AWG | 1.27 - 2.92 mm | 预镀锡 680-0875 | 640579-2 | 带电开口销 | 26 - 24 AWG | 0.635 - 1.27 mm | 可选择镀金 680-1874 | 640545-2 | 带电开口销 | 26 - 18 AWG | 1.27 - 2.92 mm | 可选择镀金 745-5839 | 794001-2 | 标准插座 | 26 - 24 AWG | 0.635 - 1.27 mm | 可选择镀金 680-1893 | 641300-1 | 标准插座 | 26 - 18 AWG | 1.27 - 2.92 mm | 预镀锡 680-1896 | 641300-2 | 标准插座 | 26 - 18 AWG | 1.27 - 2.92 mm | 可选择镀金 ### TE Connectivity 微型矩形 MR

得捷:
CONN SPLIT PIN 18-26AWG CRMP TIN

立创商城:
350967-1 非整盘发货是100一截

贸泽:
Headers & Wire Housings 26-18G PIN TERM Reel of 6500

e络盟:
压接针脚触点

艾睿:
This 350967-1 connector contact from TE Connectivity is designed to perform within the specified physical and mechanical loads to provide a solid connection. It has a straight body orientation. This device has a maximum current rating of 9 A. This has a Connector Headers and PCB Receptacles connector. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 19.94 mm long, 3.48 mm tall and 3.68 mm deep. Its wire is 18-26 AWG. It uses the crimp termination method. This connector contact has an operating temperature range of -55 °C to 105 °C.

Allied Electronics:
CONTACT; PIN; SPLIT; MINI-RECTANGULAR; 26-18AWG; .165 IN; 250 V; 9A; PRE-TIN

安富利:
Contact PIN Crimp ST Cable Mount Strip

Chip1Stop:
Contact PIN Crimp ST Cable Mount Strip

Verical:
Contact PIN Crimp ST Cable Mount 18-26AWG T/R

Newark:
# AMP - TE CONNECTIVITY  350967-1  Contact, MR Series, Pin, Solder, 18 AWG, Tin Plated Contacts, Miniature Rectangular Connectors

MASTER:
MR PIN

Powell:
.165" Centerline, 250 V, 9 A max.

ICbanQ:
CONN PIN SPLIT 26-18AWG TIN

Electro Sonic:
MR PIN PTPPHBZ
