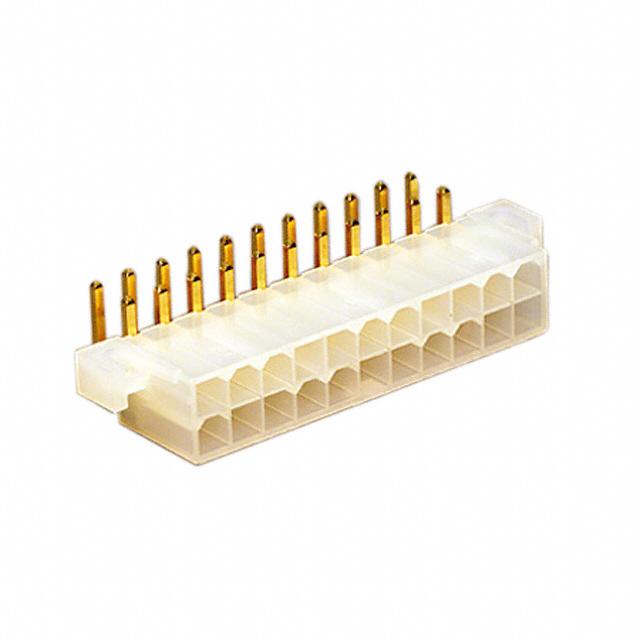

MOLEX  39295223  线至板连接器, Mini-Fit Jr 5569系列, 22 触点, 通孔安装, 2 排

Mini fit Jr. Power Connectors are designed for high current / high density applications. These connectors are ideal for wire to wire and wire to board configurations.

39-29-5223, GTIN UPC EAN: 800754931182

.
Positive locking and scoop-proof housings
.
Fully isolated terminals
.
Polarized mating geometry ensures mismating
.
Receptacles and plugs accept standard Mini-Fit and Mini-Fit Plus crimp terminals
39295223中文资料参数规格
技术参数

触点数 22

极性 Male

触点电镀 Gold

额定电流 6.00 A

排数 2

灼热丝测试标准 Non-Compliant

无卤素状态 Low Halogen

方向 Right Angle

电路数 22

易燃性等级 UL 94 V-2

针脚数 22

额定电流Max 13A/触头

工作温度Max 105 ℃

工作温度Min -40 ℃

封装参数

安装方式 Through Hole

引脚间距 4.20 mm

外形尺寸

长度 57.4 mm

宽度 12.8 mm

高度 11.4 mm

引脚间距 4.20 mm

物理参数

外壳颜色 Natural

触点材质 Brass

材质 Brass

外壳材质 Nylon

其他

产品生命周期 Active

包装方式 Bag

制造应用 商用车用, 消费电子产品, 车用, 通信与网络, 医用

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant
