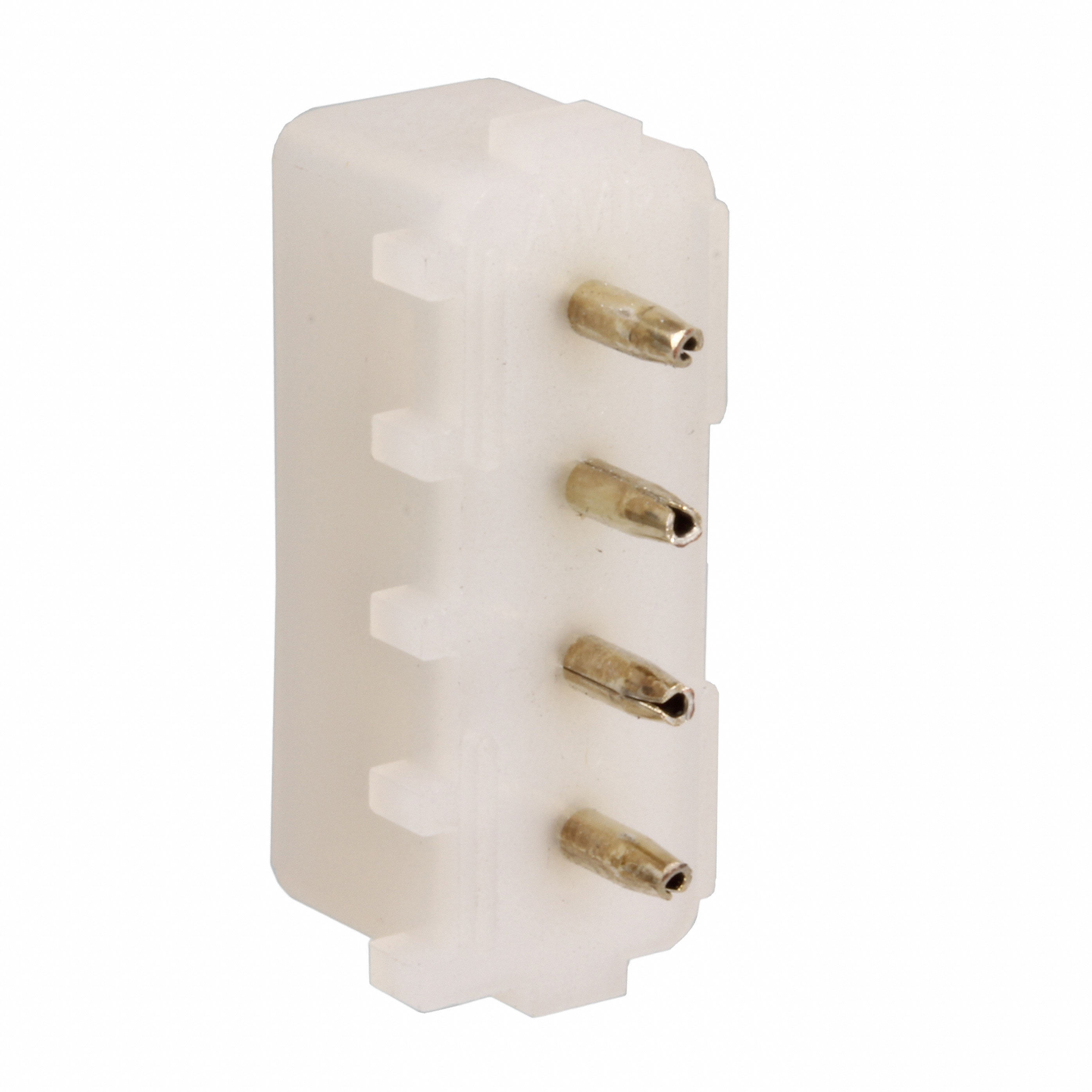

350211-3

Conn Power HDR 4POS 5.08mm Solder ST Thru-Hole 4 Terminal 1Port Bag

Conn Power HDR 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Bag

Product Highlights

Header

Contact Diameter = 2.13 mm

Number of Circuits = 4

5.08 mm Centerline, Matrix

In-Line Contact Layout

Search Keywords:

Power Pin & Socket, soft shell, Lighting Interconnection, MIL-STD 202 method 208, board to board, wire to wire, wire to board, power, discrete wire, crimp, pcb connectors, MATE-N-LOK, PWRSIGALLP

得捷:
CONN HEADER VERT 4POS 5.08MM

艾睿:
There won&s;t be any energy loss when you power up your circuit using the 350211-3 power connector from TE Connectivity. This HDR connector&s;s 4 contacts that are made out of phosphor bronze and plated with tin-lead. This connector has a single port. It has a straight body orientation. It has a maximum voltage rating of 250 VAC. Its pitch is 5.08 mm. It has a header type gender. 350211-3 is housed in nylon. This device has a maximum current rating of 13 A/contact. This product is 25.4 mm long, 10.29 mm tall and 9.65 mm deep. This power connector has a minimum operating temperature of -30 °C and a maximum of 105 °C. Its 4 terminals use the solder termination method.

Verical:
Conn Power HDR 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Bag

MASTER:
Conn Power HDR 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Bag

Powell:
.200" Centerline, 250 V, 13 A max.

Online Components:
Conn Power HDR 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Bag

Electro Sonic:
Conn Power HDR 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Bag
