3-641213-5

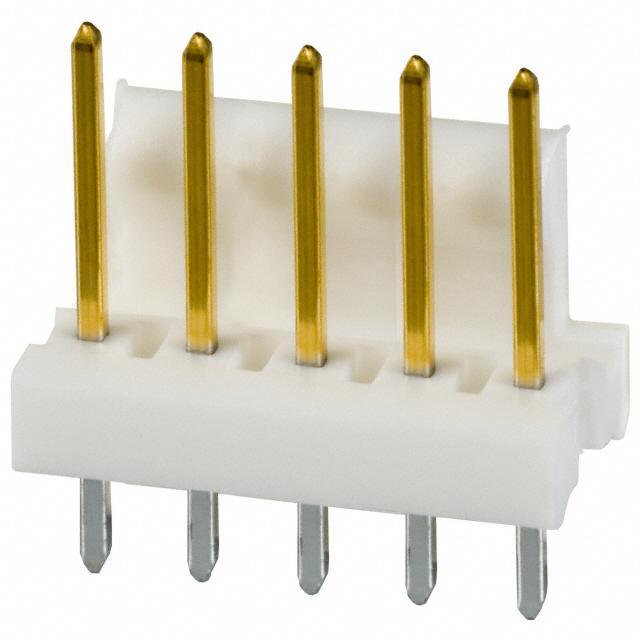

AMP - TE CONNECTIVITY 3-641213-5 Wire-To-Board Connector, 2.54mm, 5Contacts, Header, MTA-100 Series, Through Hole, 1Rows

针座 通孔 5 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 5POS 2.54MM

艾睿:
Mount this wire to board 3-641213-5 header connector from TE Connectivity on a jumper post on your PCB to support physical configuration options. This HDR connector&s;s 5 contacts that are made out of copper alloy and plated with gold over nickel. Its pitch is 2.54 mm. It has a straight body orientation. It has a header type gender. It has a maximum voltage rating of 250 VAC. This is a 1-row connector. This device has a maximum current rating of 5 A/contact. This product is 12.7 mm long, 10.03 mm tall and 5.72 mm deep. 3-641213-5 is housed in white polyester. This connector has an operating temperature of -55 to 105 °C. It uses the solder termination method.

安富利:
Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole

Chip1Stop:
Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole Package

Verical:
Conn Wire to Board HDR 5 POS 2.54mm Solder ST Thru-Hole Package

Newark:
# AMP - TE CONNECTIVITY  3-641213-5  Wire-To-Board Connector, 2.54 mm, 5 Contacts, Header, MTA-100 Series, Through Hole, 1 Rows

MASTER:
MTA-100 HEADER ASSEMBLY, POLARIZED, NOTCHED, .025 SQUARE STRAIGHT POST, .000030 GOLD PLATED

Electro Sonic:
05P MTA100 HDR ASSY PO/ST LF
