3-641213-8

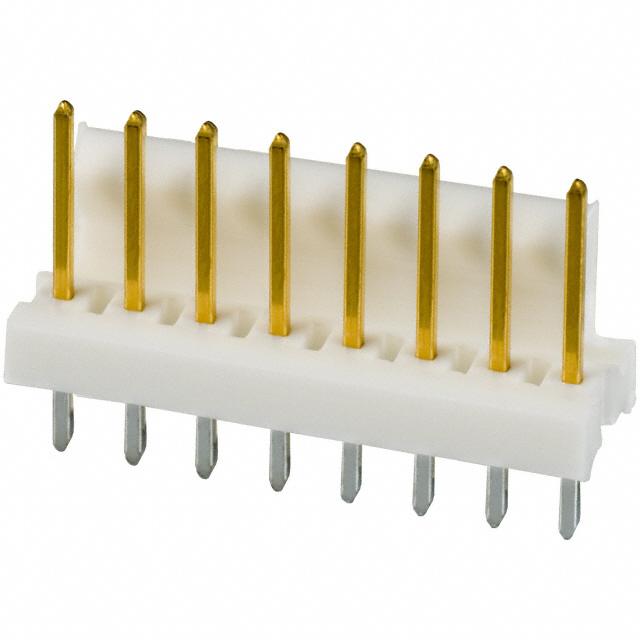

AMP - TE CONNECTIVITY 3-641213-8 Wire-To-Board Connector, 2.54mm, 8Contacts, Header, MTA-100 Series, Through Hole, 1Rows

针座 通孔 8 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 8POS 2.54MM

艾睿:

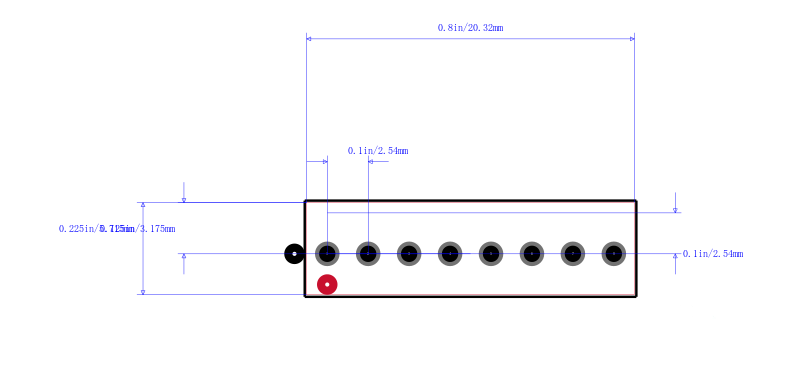

Use this wire to board 3-641213-8 connector from TE Connectivity when board-to-board interconnects is required. This HDR connector&s;s 8 contacts that are made out of copper alloy and plated with gold over nickel. It has a straight body orientation. This is a 1-row connector. Its pitch is 2.54 mm. It has a header type gender. It has a maximum voltage rating of 250 VAC. This device has a maximum current rating of 5 A/contact. This connector has an operating temperature of -55 to 105 °C. It uses the solder termination method. 3-641213-8 is housed in white polyester. This product is 20.32 mm long, 10.03 mm tall and 5.72 mm deep.

Chip1Stop:
Conn Wire to Board HDR 8 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Wire to Board HDR 8 POS 2.54mm Solder ST Thru-Hole Package

Newark:
# AMP - TE CONNECTIVITY  3-641213-8  Wire-To-Board Connector, 2.54 mm, 8 Contacts, Header, MTA-100 Series, Through Hole, 1 Rows

MASTER:
Conn Wire to Board HDR 8 POS 2.54mm Solder ST Thru-Hole Package

Electro Sonic:
08P MTA100 HDR ASSY PO/ST LF
