3-178137-5

间距3.81mm 行距7.62mm 6P2*3 XY键 黑色 水平式 镀锡2.00μm 推荐选用：3-178137-2

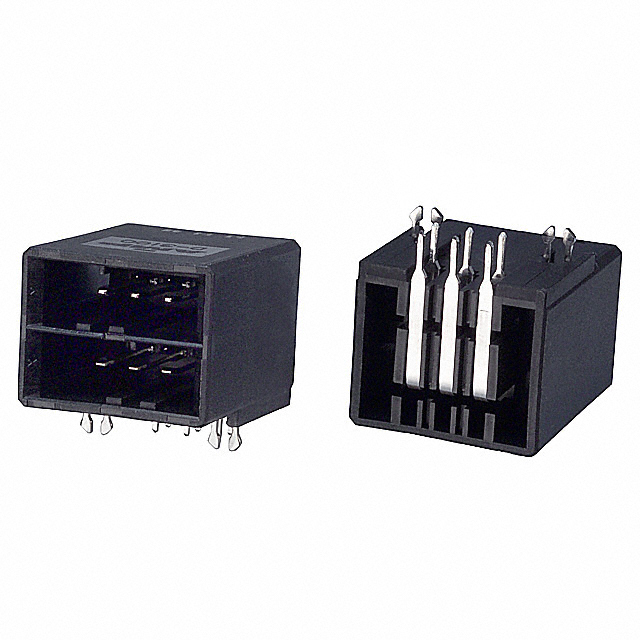

Connector Header Through Hole, Right Angle 6 position 0.150" 3.81mm

得捷:
CONN HEADER R/A 6POS 3.81MM

艾睿:
This 3-178137-5 power connector from TE Connectivity comes in a variety of types to support AC or DC power entry modules. This M connector&s;s 6 contacts that are made out of copper alloy and plated with tin. It has a male type gender. This connector has a single port. Its pitch is 3.81 mm. It has a maximum voltage rating of 250 VAC. It has a right angle body orientation. This device has a maximum current rating of 10 A/contact. 3-178137-5 is housed in nylon. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its 6 terminals use the solder termination method. This product is 21.62 mm long, 18.47 mm tall and 25.91 mm deep. This power connector has an operating temperature range of -55 °C to 105 °C.

安富利:
Conn Power M 6 POS 3.81mm Solder RA Thru-Hole 6 Terminal 1 Port Tube

Powell:
Dynamic Series Connectors

ICbanQ:
CONN HDR 6POS R/A KEY-XY TIN
