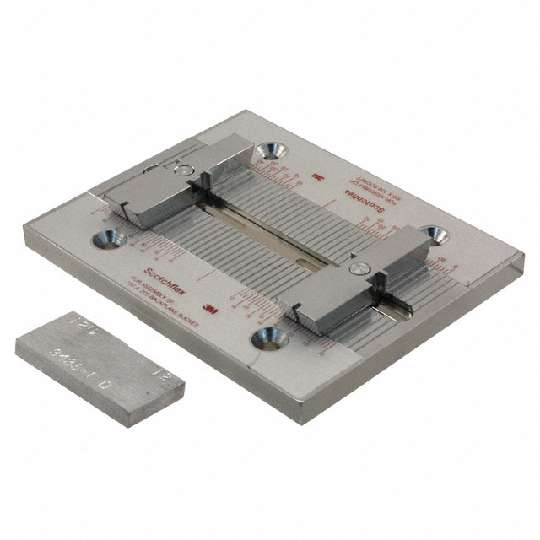

Various adjustments are required to the locator plate, depending on which socket connector or cable is being assembled. Locator Plate is the recommended assembly aid.
.
Locator Plate can be used to assemble:
.
0.1" x 0.1" & 0.1" x 0.2" socket connectors with and without centre bump feature
.
Socket connectors with standard flat cable and with ground plane cable
