3-208403-2

集管和线壳 PIN HDR ASSY 10P MMATE LF

针座 通孔，直角 10 位置 0.200"（5.08mm）

得捷:
CONN HEADER R/A 10POS 5.08MM

贸泽:
集管和线壳 PIN HDR ASSY 10P MMATE LF

艾睿:

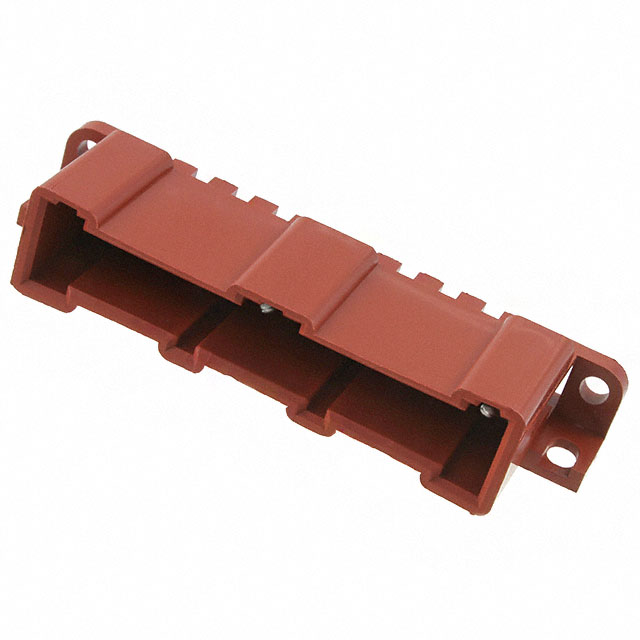

TE Connectivity&s;s wire to board 3-208403-2 header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This PIN connector&s;s 10 contacts that are made out of copper alloy and plated with tin. It has a maximum voltage rating of 600 VAC. Its pitch is 5.08 mm. It has a right angle body orientation. This is a 1-row connector. This device has a maximum current rating of 14 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. 3-208403-2 is housed in red thermoplastic. This product is 68.58 mm long, 13.97 mm tall and 23.88 mm deep. It uses the solder termination method. This connector has an operating temperature of -55 to 130 °C.

安富利:
Conn Wire to Board PIN 10 POS 5.08mm Solder RA Thru-Hole

Chip1Stop:
Conn Wire to Board PIN 10 POS 5.08mm Solder RA Thru-Hole

Verical:
Conn Rectangular PIN 10 POS 5.08mm Solder RA Thru-Hole Tube

Powell:
Metrimate Connectors

Electro Sonic:
PIN HDR ASSY,10P,MMATE LF
