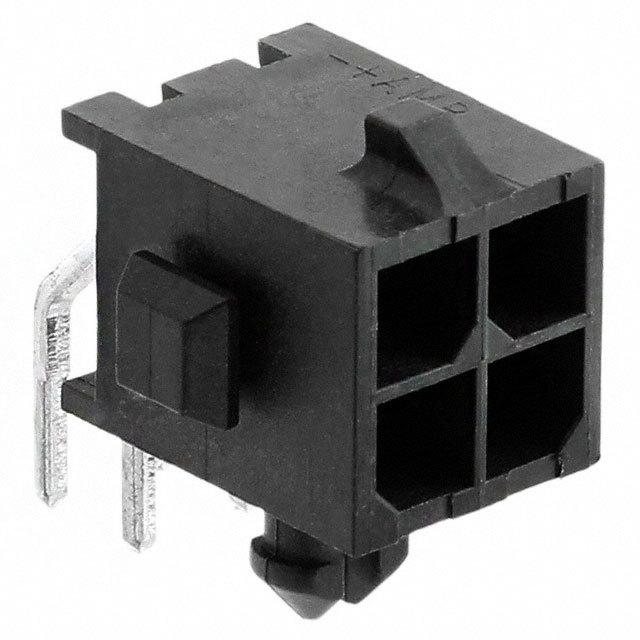

3-794619-4

Conn Power HDR 4POS 3mm Solder RA Thru-Hole 4 Terminal 1Port

04P MICRO MNL ASSY,R/A,HDR LF

Product Highlights

Connector

Connector Type = Header - Pin

Through Hole Contact Termination Type

4 Positions

Number of Rows = 2

得捷:
CONN HEADER R/A 4POS 3MM

贸泽:
Pin & Socket Connectors 04P MICRO MNL ASSY,R/A,HDR LF

艾睿:
Use this 3-794619-4 power connector from TE Connectivity to connect a power supply to a circuit. This HDR connector&s;s 4 contacts that are made out of brass and plated with gold over nickel. Its pitch is 3 mm. This connector has a single port. It has a header type gender. It has a maximum voltage rating of 250 VAC. It has a right angle body orientation. This device has a maximum current rating of 5 A/contact. 3-794619-4 is housed in nylon. This power connector has a minimum operating temperature of -40 °C and a maximum of 105 °C. Its 4 terminals use the solder termination method. This product is 10 mm long, 8.67 mm tall and 11.92 mm deep.

安富利:
Conn Power HDR 4 POS 3mm Solder RA Thru-Hole 4 Terminal 1 Port

Verical:
Conn Power HDR 4 POS 3mm Solder RA Thru-Hole 4 Terminal 1 Port Box/Tray

Newark:
# AMP - TE CONNECTIVITY  3-794619-4  04P MICRO MNL ASSY,R/A,HDR LF New

MASTER:
THRU-HOLE, R/A, 15 GOLD HEADER, PLASTIC BOARDLOCK, DUAL ROW, MICRO MATE-N-LOK

Powell:
3mm Centerline, 250V, 5 A max.

Online Components:
04P MICRO MNL ASSY,R/A,HDR LF

Electro Sonic:
04P MICRO MNL ASSY,R/A,HDR LF
