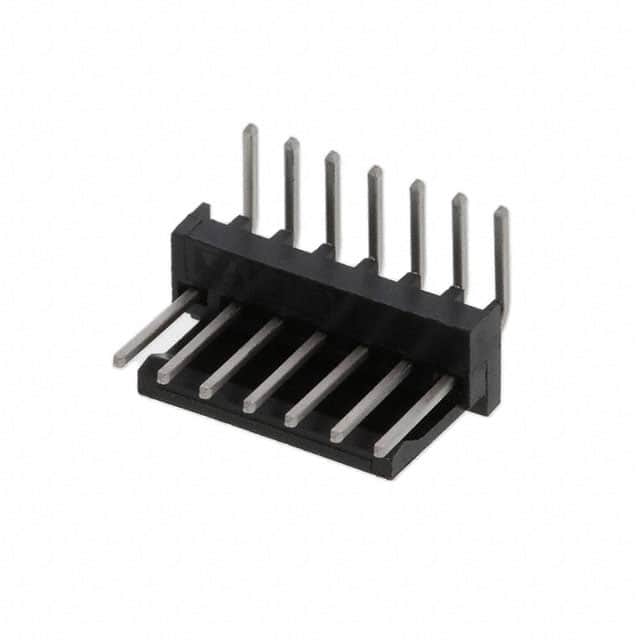

Conn Wire to Board HDR 7POS 2.54mm Solder RA Thru-Hole Bag
07P MTA100 HRD ASSY F/L LF
Product Highlights
7 Positions
With Contacts
Housing Gender = Header - Pin
Contact Gender = Pin
MTA-100 Product Line
得捷:
CONN HEADER R/A 7POS 2.54MM
艾睿:
Reduce safety concerns with this wire to board 3-647630-7 header connector from TE Connectivity which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This HDR connector&s;s 7 contacts that are made out of copper alloy and plated with tin. It has a maximum voltage rating of 250 VAC. It has a right angle body orientation. Its pitch is 2.54 mm. This is a 1-row connector. It has a header type gender. This device has a maximum current rating of 5 A/contact. 3-647630-7 is housed in black thermoplastic. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C. This product is 17.78 mm long, 13.71 mm tall and 6.35 mm deep.
Chip1Stop:
Conn Wire to Board HDR 7 POS 2.54mm Solder RA Thru-Hole Bag
Verical:
Conn Wire to Board HDR 7 POS 2.54mm Solder RA Thru-Hole Bag/Box
MASTER:
Conn Wire to Board HDR 7 POS 2.54mm Solder RA Thru-Hole Bag/Box
Online Components:
07P MTA100 HRD ASSY F/L LF
Electro Sonic:
07P MTA100 HRD ASSY F/L LF
触点数 7
触点电镀 Tin
额定电流 5 A
排数 1
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 7
额定电流Max 5A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 250 VAC
接触电阻Max 6 mΩ
安装方式 Through Hole
高度 13.71 mm
外壳颜色 Black
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Bag, Box
制造应用 Signal, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
