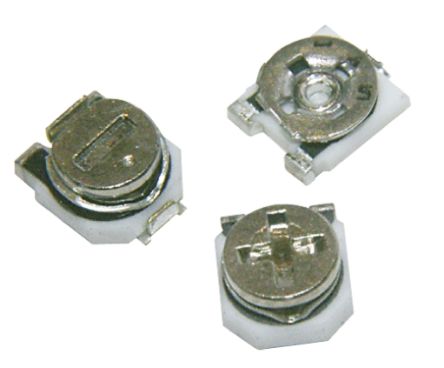

200mW 4mm Open Frame - 3152 SeriesTyco 3152 Series 200mW Top Adjust 4mm SMD cermet open frame trimmer potentiometers with a plus slot that is ideal for automatic top adjustment. The 3152 series is a lightweight and low profile trimmer potentiometer solution ideal for new generation hand held equipments. The 3152 trimmer is suitable for reflow soldering systems and automatic placement, with the central hole filled with resin to improve ease of pick and placement. Applications for the 3152 series trimmer include: Audio / Visual; Calibration; Instrumentation; Industrial controls Weight - 0.2g Height above the board - 1.5mm Electrical rotation - 260° ±20° Mechanical rotation - Continuous Value marked on the component In line terminals Top adjust skeletal design ### 单转 - 表面安装 - 金属陶瓷
200mW 4mm 开放式机架 - 3152 系列
Tyco 3152 系列 200mW 顶部调整 4mm SMD 金属陶瓷开放式机架微调电容器电位计，带十字插槽，特别适用于自动顶部调整。3152 系列是一种轻质薄型微调电容器电位计的解决方案，特别适用于新一代手持式设备。3152 微调电容器电位计适用于回流焊接系统和自动放置，中心孔填充了树脂，以提高拾放的便捷性。
3152 系列微调电容器的应用包括：音频/视频、校准、仪器仪表、工业控制
重量 - 0.2g
距离板的高度 - 1.5mm
电气旋转 - 260° ±20°
机械旋转 - 连续
元件上标有数值
直插式接线端子
顶部调整骨骼式设计
得捷:
TRIMMER 5K OHM 0.2W J LEAD TOP
欧时:
TE Connectivity 3152 系列 表面贴装 微调电阻器 3152W502P, 带安装片接端, 5kΩ ±25%, 0.2W, ±250ppm/°C
艾睿:
Res Cermet Trimmer 5K Ohm 25% 0.2W1/5W 1Elec/1MechTurn 3.8 X 4.2 X 1.4mm Foot Print SMD T/R
Allied Electronics:
SMD Trimmer Resistor w/ Tab Term, 5kOhm +/-25% 0.2W +/-250ppm/C Top Adjust
