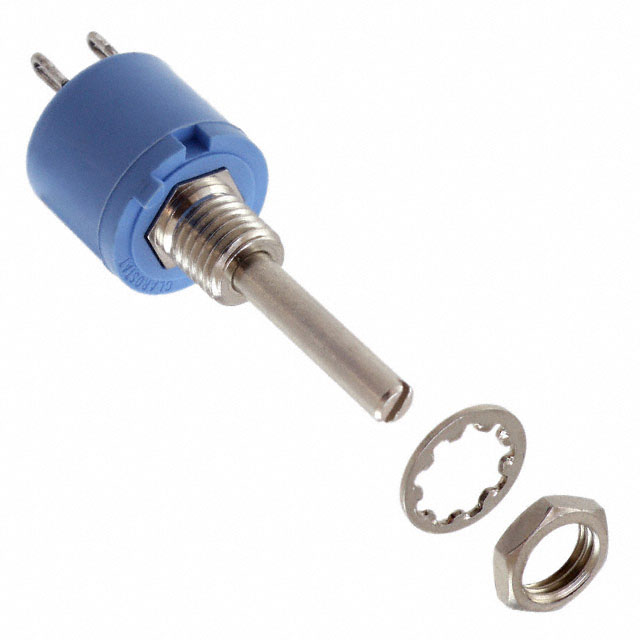

392C310K

Res Conductive Plastic POT 10KΩ 10% 0.5W1/2W 1Elec/1MechTurns 3.18mm 13.08 X 38.89mm Pin Panel Mount

392 Series Industrial Potentiometer, Conductive Plastic Element, PC Terminal, 0.5 W Power Rating

Economical potentiometer designed to meet wave soldering applications for mounting to PC boards. Meets flow solderability and washability test requirements. MIL-R-94 standards apply where applicable.

.

* Resistance Tolerance:** Linear, up to 1 MΩ ±10%, 1M to 5M ±20%. Tapers, up to 250K ±10%, above 250K to 5M ±20%. ** Resistance Range:** 100 Ω to 5 MΩ, linear; 500 Ω to 2 MΩ, tapered. ** Power Rating:** 0.5 watt maximum continuous power rating for linear taper, but voltage not to exceed rating. ** Working Voltage:** 350 VDC across end terminals, but power not to exceed rating. ** Linearity:** ±5% Independent. ** Torque Range:** 0.20 to 2.0 oz. in. ** Shafts, Standard:** 0.125 dia. ** Solvent Resistance:** Housing resistant to trichlorethylene, chlorethene, NU Freon TMS, Freon TMC, carbon tetrachloride, toluene, MEK ethyleacetate and gasoline. ** Series 392JA:** 7/8" long shaft FMS, screwdriver slotted metal shaft and metal bushing, PC terminals. ** Series 392JB:** 7/8" long shaft FMS, screwdriver slotted plastic shaft and plastic bushing, PC terminals.

The 392JA series features a 7/8" long shaft FMS, screwdriver slotted metal shaft and metal bushing, PC terminals.

These industrial potentiometer have conductive plastic element. And these are useful for medical equipment, telecommunication and manual controls.
