RUBYCON 35ZLG100MEFC8X11.5 铝电解电容, 微型, ZLG系列, 100 µF, ± 20%, 35 V, 8 mm, 径向引线
The ZLG series is radial leaded, polarized aluminium electrolytic capacitors. At higher frequencies impedance will be extremely less than ZL series.
- .
- Ultra low impedance
- .
- Capacitance value ranges from 4.7µF to 3900µF
- .
- Available in ±20% tolerance
- .
- Rated voltage of 6.3VDC to 35VDC
- .
- Operating temperature range -40°C to 105°C
- .
- Capacitor size varies from 4mm × 7mm to 12.5mm × 25mm
- .
- Endurance of 1000hours to 5000hours at 105°C depending on case size diameter
额定电压DC 35.0 V
电容 100 µF
容差 ±20 %
纹波电流 910 mA
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 35 V
安装方式 Through Hole
引脚数 2

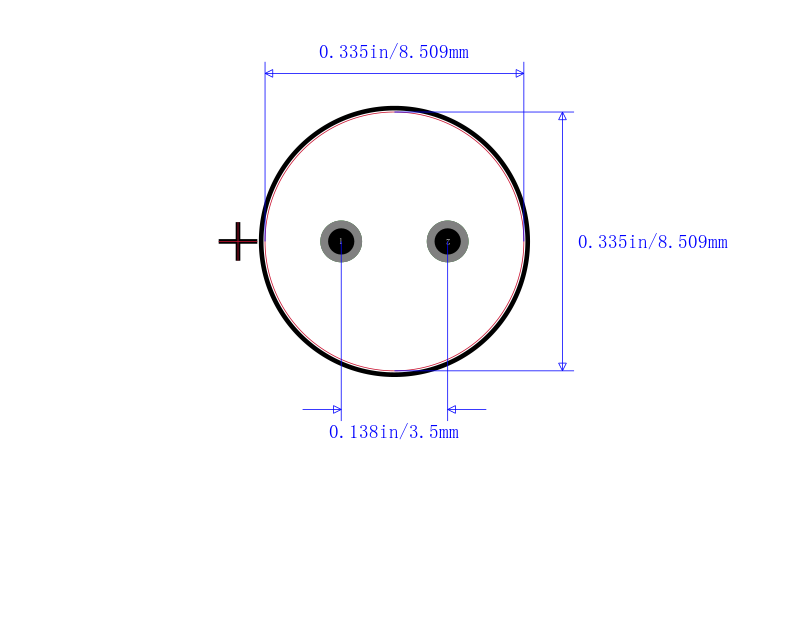

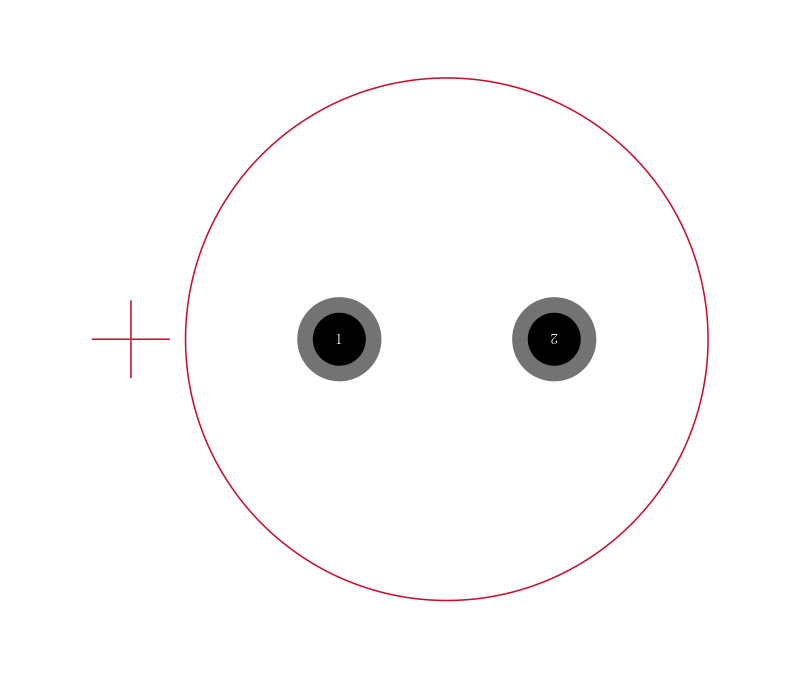

封装 Radial, CAN
引脚间距 3.5 mm
高度 11.5 mm
直径 8.00 mm
封装 Radial, CAN
引脚间距 3.5 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 105℃
包装方式 Each
寿命（小时） 3000h @105℃
制造应用 Consumer Electronics, Industrial, Portable Devices, 消费电子产品, Power Management, 工业, 便携式器材, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
35ZLG100MEFC8X11.5 Rubycon | 当前型号 | 当前型号 |
35ZLH100MEFC6.3X11 Rubycon | 类似代替 | 35ZLG100MEFC8X11.5和35ZLH100MEFC6.3X11的区别 |
