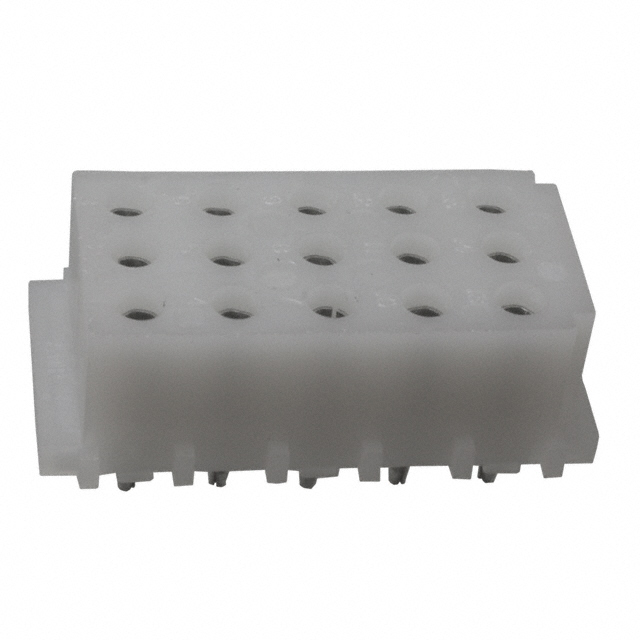

350644-1

Conn Power SKT 15POS 5.13mm Solder ST Thru-Hole 15 Terminal 1Port

15 Position Header Connector Through Hole

得捷:
CONN HDR 15POS 0.24 TIN PCB

艾睿:
There won&s;t be any energy loss when you power up your circuit using the 350644-1 power connector from TE Connectivity. This SKT connector&s;s 15 contacts that are made out of phosphor bronze and plated with pre-tin. It has a straight body orientation. It has a maximum voltage rating of 250 VDC|250VAC. This connector has a single port. Its pitch is 5.13 mm. It has a socket type gender. 350644-1 is housed in nylon. This device has a maximum current rating of 13 A/contact. This power connector has an operating temperature range of -30 °C to 105 °C. This product is 12.7 mm tall. Its 15 terminals use the solder termination method.

安富利:
Conn Power SKT 15 POS 5.13mm Solder ST Thru-Hole 15 Terminal 1 Port

Verical:
Conn Power SKT 15 POS 5.13mm Solder ST Thru-Hole 15 Terminal 1 Port Bag

Newark:
# AMP - TE CONNECTIVITY  350644-1  15P CMNL HDR ASSY NATL New

MASTER:
15 CIRCUIT MATE-N-LOK P.C. BOARD SOCKET HEADER

Powell:
.200" Centerline, 250 V, 13 A max.

Electro Sonic:
15P CMNL HDR ASSY NATL
