3-643234-0

Conn Power SKT 6POS 6.35mm Solder RA Thru-Hole 6 Terminal 1Port

6 Position Header Connector Through Hole, Right Angle

得捷:
CONN HDR 6POS 0.25 GOLD PCB R/A

贸泽:
Pin & Socket Connectors 6P HDR ASSY R/A 94V0

艾睿:

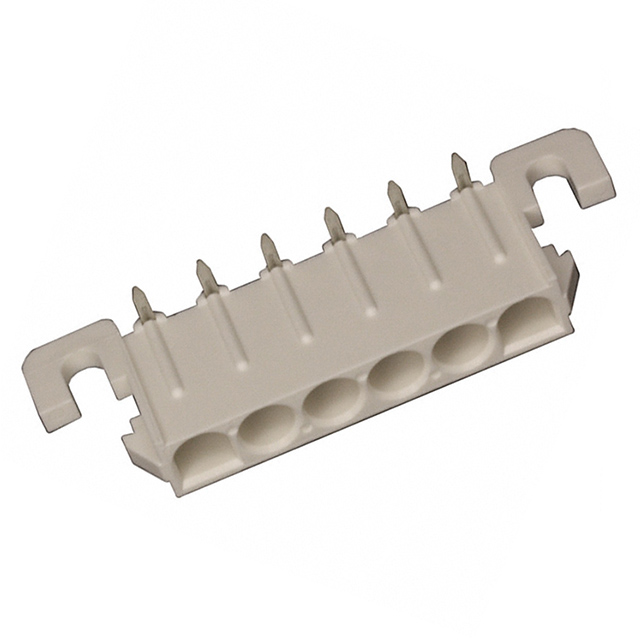

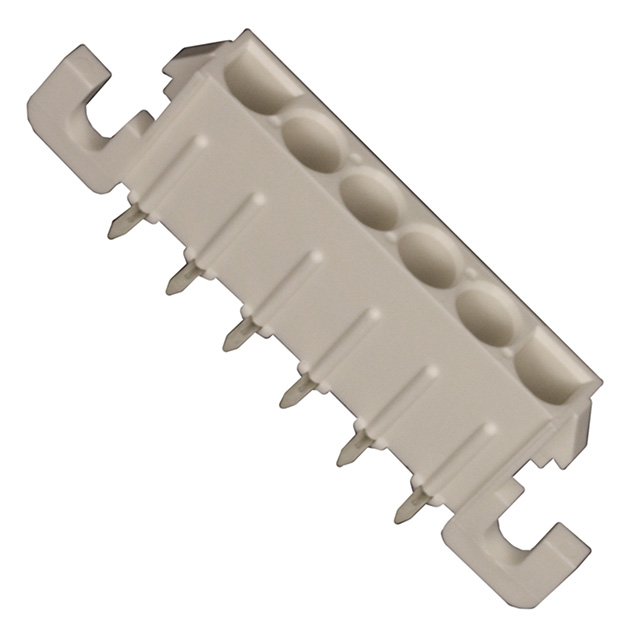

Use this 3-643234-0 power connector from TE Connectivity to connect a power supply to a circuit. This SKT connector&s;s 6 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a socket type gender. Its pitch is 6.35 mm. It has a right angle body orientation. This connector has a single port. It has a maximum voltage rating of 600 VDC|600VAC. This device has a maximum current rating of 19 A/contact. 3-643234-0 is housed in nylon. Its 6 terminals use the solder termination method. This product is 37.97 mm long, 9.14 mm tall and 17.27 mm deep.

安富利:
Conn Power SKT 6 POS 6.35mm Solder RA Thru-Hole 6 Terminal 1 Port

Verical:
Conn Power SKT 6 POS 6.35mm Solder RA Thru-Hole 6 Terminal 1 Port Box

MASTER:
SOCKET HEADER ASSEMBLY, RIGHT ANGLE MOUNT, 6 POSITION, UNIVERSAL MATE-N-LOKTM

Powell:
.250" Centerline, 600 V, 19 - 36 A max

Electro Sonic:
06P UMNL HDR ASSY R/A 94VO LF
