3-534206-1

Conn Socket Strip SKT 62POS 2.54mm Solder ST Thru-Hole Gang of Tubes

62 Position Receptacle Connector Through Hole

得捷:
CONN RCPT 62POS 0.1 GOLD PCB

艾睿:

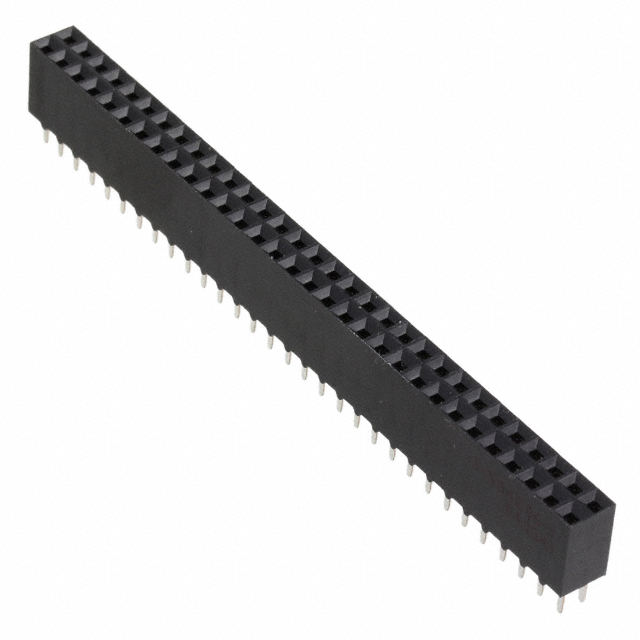

This socket strip 3-534206-1 header connector from TE Connectivity reduces the possibility of accidentally shorting pins when a board is being used. This SKT connector&s;s 62 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a socket type gender. This is a 2-row connector. It has a straight body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. 3-534206-1 is housed in black polychlorinated terphenyl. It uses the solder termination method. This product is 78.74 mm long, 8.12 mm tall and 5.03 mm deep. This connector has an operating temperature of -65 to 105 °C.

Powell:
.100 inch AMPMODU Receptacles
