3108NL-05W-B30-P00

NMB TECHNOLOGIES  3108NL-05W-B30-P00  轴流风扇, 管轴式, 方形, 滚珠, 3108NL系列, 24 VDC, 80 mm, 20 mm, 34.6 cu.ft/min, 0.98 m³/min

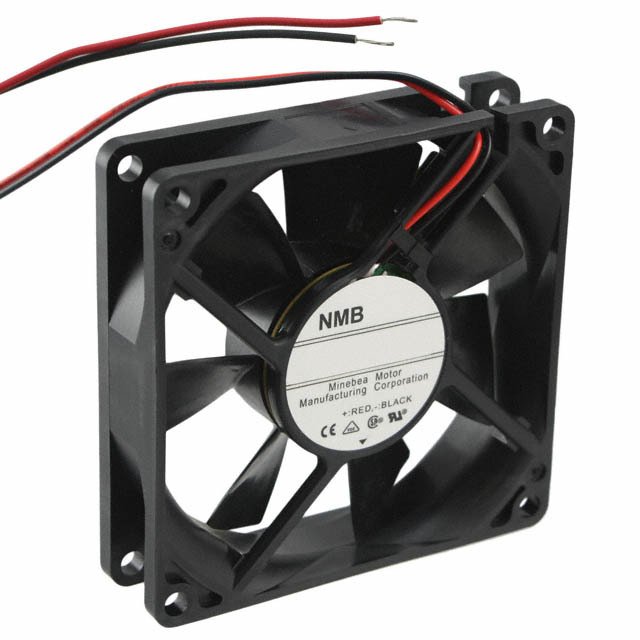

The is a 24VDC Axial Fan with ball bearing and wire leaded power connection. This N-series axial fan comes with plastic black casing and impeller. UL1007, 24AWG red + and black - lead wire. Counter-clockwise direction of rotation, air out over struts. Brushless type DCM motor function, standard special control function and standard model flanged mounting. Can be an integral part of a cooling solution for heat-generating purpose.

.

UL94V-0 Flammability rating

.

2950RPM Speed rating

.

-10 to 70°C Operating temperature range

.

1.68W Rated power

.

0.13"-H2O Static pressure

.

10MR or over with a DC500V Megger insulation resistance

.

Auto restart

.

Polarity protection
