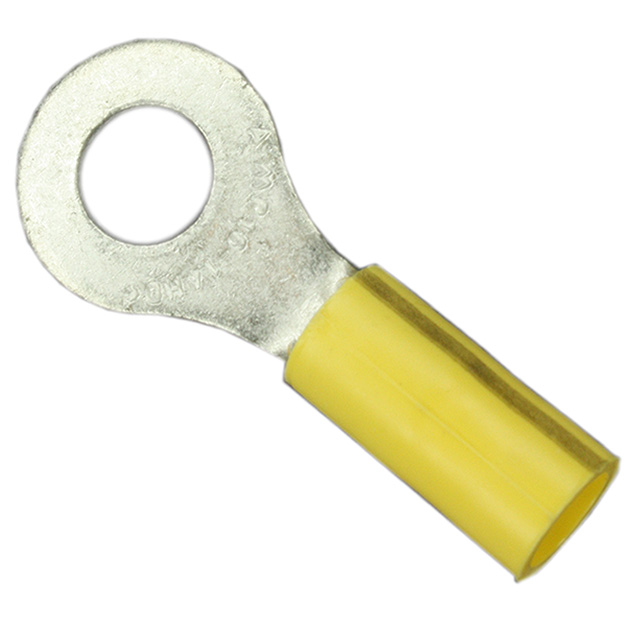

Ring Tongue Terminal 14-16AWG Copper Yellow/Black 32.92mm Tin Loose
TERMINAL,PG R 16-14HD 1/4
Product Highlights
Terminal Shape = Ring Tongue
Receptacle Style = Straight
Body Style = PLASTI-GRIP
Barrel Type = Closed Barrel
Wire/Cable Type = Regular Wire
得捷:
CONN RING CIRC 14-16AWG #1/4
艾睿:
Create a connection between two terminal blocks by using this ring tongue terminal 34824 wire terminal from TE Connectivity. This product is 32.92 mm long and 13.49 mm. Its wire is 14-16 AWG.
Verical:
Ring Tongue Terminal 14-16AWG Copper Yellow/Black 32.92mm Tin Loose
Newark:
# AMP - TE CONNECTIVITY 34824 TERMINAL,PG R 16-14HD 1/4
MASTER:
TERMINAL, RING TONGUE, PLASTI-GRIP
Powell:
Ring and Spade Tongue Terminals
Online Components:
TERMINAL,PG R 16-14HD 1/4
Electro Sonic:
TERMINAL,PG R 16-14HD 1/4
极性 Female
线规 14AWG ~ 16AWG
触点电镀 Tin
方向 Straight
端接类型 Ring Lug, Ring
工作温度Max 105 ℃
额定电压Max 600 VAC
额定电压 600 VAC
长度 32.92 mm
宽度 13.5 mm
厚度 1.22 mm
颜色 Black, Yellow
触点材质 Copper
材质 Copper
绝缘材质 Vinyl
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536904000
