36958概述

端子, 对接接片, 2/0AWG, 非绝缘

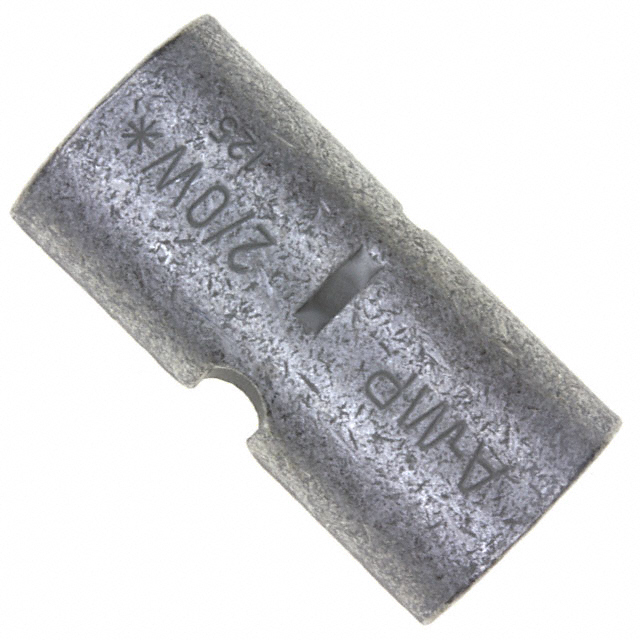

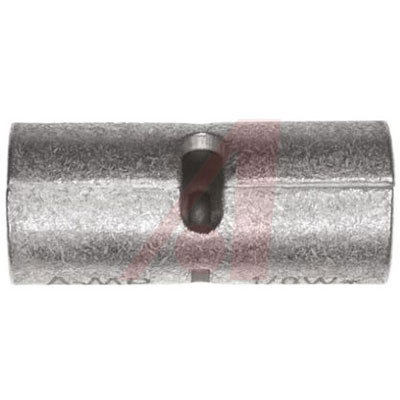

** SOLISTRAND Sight Hole Closed Barrel Butt Splices**

SOLISTRAND sight hole closed barrel butt splices designed to terminate solid and stranded wire and irregular shaped conductors. These SOLISTRAND sight hole closed barrel butt splices are made from fine grade high conductivity copper with tin plating and have closed barrels with brazed seams that create a uniform metal strength around the barrel. The inner surface of the barrels of these SOLISTRAND sight hole butt splices are either dimpled or serrated for maximum tensile strength and to maximize the electrical contact area after crimping

36958中文资料参数规格
技术参数

触点电镀 Tin

方向 Straight

工作温度Max 170 ℃

外形尺寸

长度 36.5 mm

物理参数

触点材质 Copper

材质 Copper

绝缘材质 Non-Insulated

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8536904000

数据手册

在线购买36958
型号: 36958
描述:端子, 对接接片, 2/0AWG, 非绝缘
