TE CONNECTIVITY 3-1991253-7 连接器后壳, D Sub, DC, 180°, PP聚丙烯主体
塑料底壳，用于 D 超微型

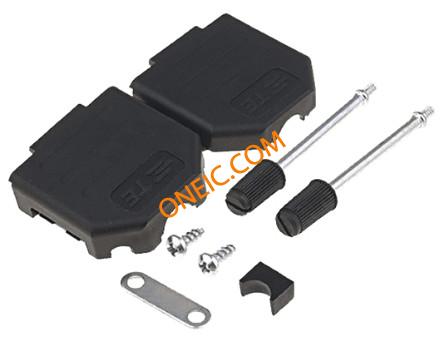

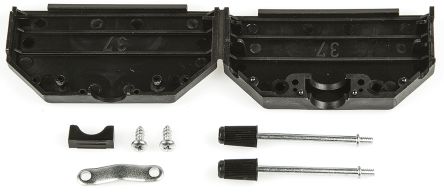

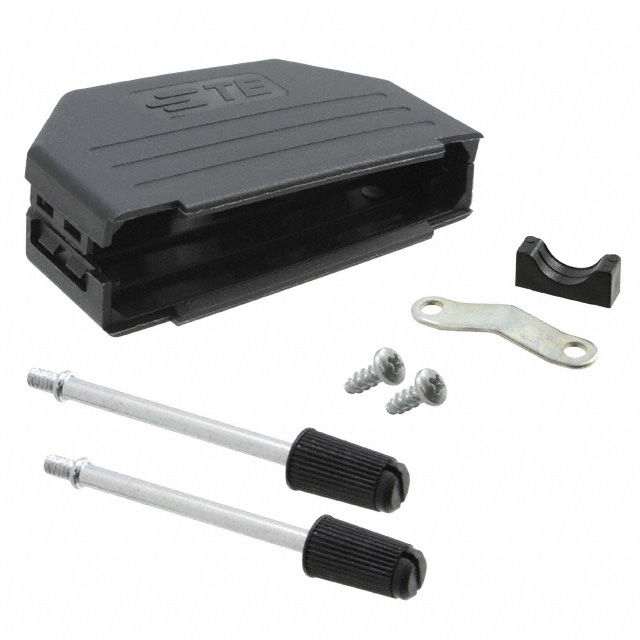

热塑性底壳，适合与 D 超微型连接器一起使用。这些底壳具有带 180° 电缆出口角的泡壳型外壳，可接受绝缘直径范围为 3.00 至 11mm 的电缆。每个 D 超微型底壳包含下列组件：
2 个聚酰胺插座螺钉旋钮
2 个镀锌碳钢插座螺钉，具备 4-40 螺纹规格
1 个聚酰胺电缆夹基座
1 个镀锌碳钢电缆夹
2 个镀锌碳钢固定螺钉
1 个聚酰胺底壳体
得捷:
CONN BACKSHELL 37POS 180DEG BLK
欧时:
TE Connectivity 1991253 系列 37 路 直向 黑色 PA D-sub 连接器底壳 3-1991253-7
e络盟:
连接器后壳, D Sub, DC, 180°, PP聚丙烯主体
艾睿:
This 3-1991253-7 backshell from TE Connectivity is available in different designs to provide the best backshell and environmental sealing for different wires and cables. Its shell size is 4. This has a Connector D-Subminiature connector. This product is 70.9 mm long, 15 mm tall and 47.3 mm deep.
Allied Electronics:
1991253 Series Polyamide D-sub Connector Backshell; 37 Way
安富利:
Connector Accessories 37 POS Backshell/Cable Clamp Polyamide Black Backshell Steel Zinc
Chip1Stop:
Connector Accessories Backshell/Cable Clamp Straight Steel Black Bulk
Verical:
Backshell/Clamp 180° 4 Shell Size Polyamide
Newark:
# TE CONNECTIVITY 3-1991253-7 D Sub Backshell, DC, 180°, Nylon Polyamide Body
MASTER:
LOW COST PLASTIC D-SUB BACKSHELL
Powell:
D-Sub Backshells 37 POS BCKSHL SIZE4
Online Components:
37 WAY LOW COST D SUB BACKSHEL
Electro Sonic:
37 WAY LOW COST D SUB BACKSHEL
