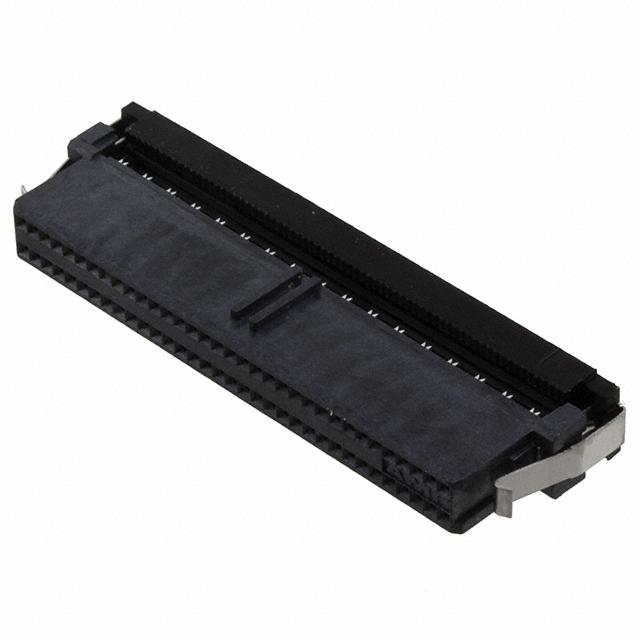

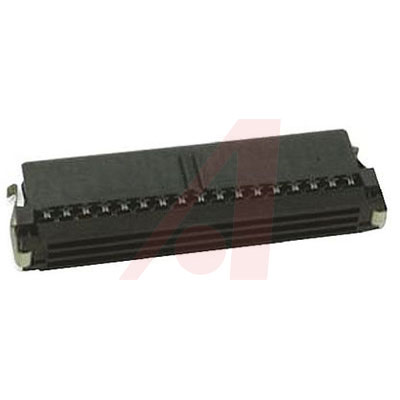

AMP FROM TE CONNECTIVITY 3-111196-4. 连接器, 线至板
The AMPMODU System 50 series Connector includes a wide variety of high density board-to-board thru-hole and surface-mount and cable-to-board connectors. The AMPMODU System 50 is composed of one and two-row receptacles and post headers on 0.050x0.100-inch 1.27x2.54mm spacing between contacts for extreme density and efficient use of printed circuit board area. AMPMODU System 50 receptacles and header assemblies can be categorized in three groups - board-mount headers, board-mount receptacles and cable-to-board receptacles. Receptacle contacts and mating 0.0150inch 0.38mm square posts are formed from high conductivity copper alloy and are selectively plated with gold to promote higher performance and reliability. Board-mounted thru-hole post headers and receptacle connectors are available for right-angle and vertical mating configurations. Surface-mounted connectors are available in vertical, double row styles for parallel stacking applications.
触点数 68
极性 Female
线规 30AWG ~ 32AWG
触点电镀 Tin, Gold
额定电流 0.5 A
排数 2
易燃性等级 UL 94 V-0
针脚数 68
额定电流Max 0.5A/触头
工作温度Max 105 ℃
工作温度Min -65 ℃
额定电压Max 30 VAC
额定电压 30 V
接触电阻Max 30 mΩ
封装 100
高度 12.32 mm
封装 100
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
工作温度 -65℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tray
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8536694040
