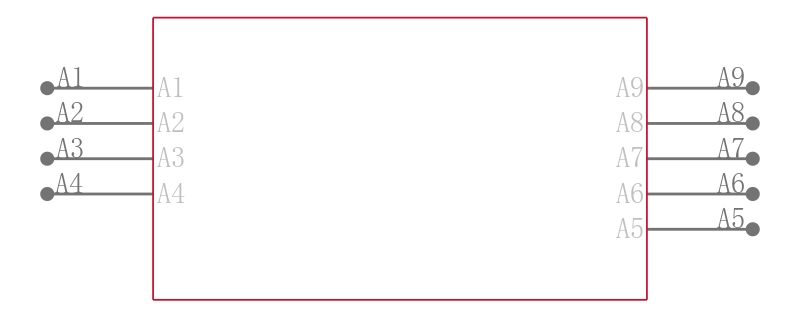

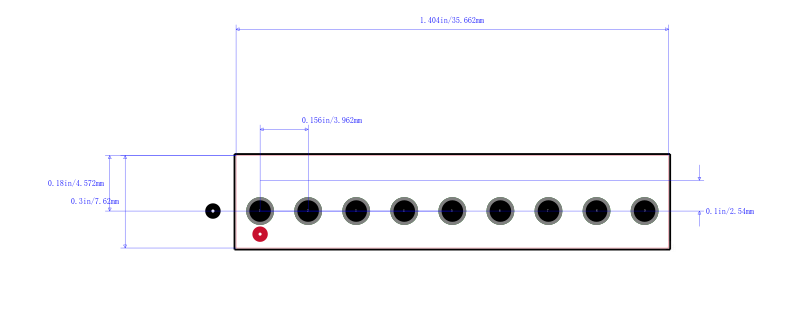

3-641208-9

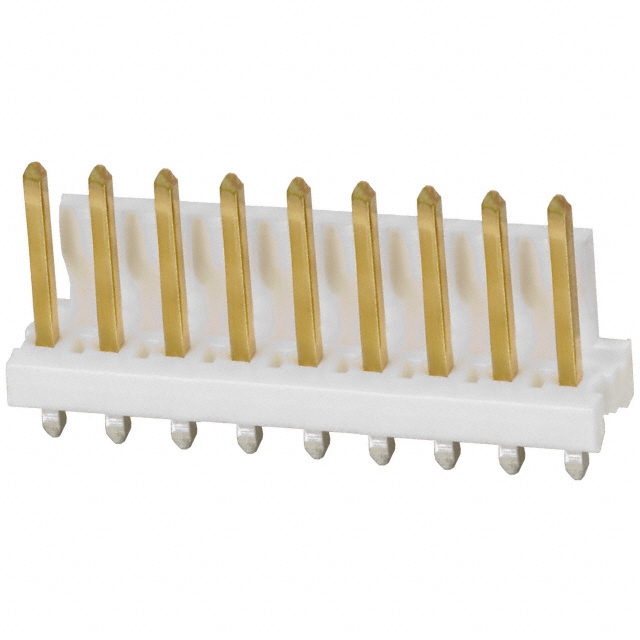

集管和线壳 FRCTN LK HDR STR 9P Square post gold

* Square Posts Friction Lock Headers—Straight * .125 [3.18] Solder Tail * Connectors and headers for 2 through 24 positions; wire sizes of 18, 20, 22, 24 and 26 AWG [0 .9– 0.12 mm2] * Connectors and headers, except shrouded headers, are end-to-end stackable * Quad Connectors for higher current rating * Posted connectors for 2, 3, 4, 6, 9, 12, 15 and 24 positions * Card edge connectors for 3, 6, 9, 12, 15, 18 and 20 through 24 positions * Connectors preloaded with IDC contacts * All contacts are slotted for insulation displacement IDC termination technique * Connector styles include both closed end and feedthru, with and without locking ramps and polarizing tabs * Molded ribs on housing do not allow reverse mating * Contacts are lubricated for fretting corrosion protection * Benefits derived from the MTA-156 system include increases quality and ease of handling such as * One-step assembly * No wire stripping * No contact damage * Reduced wiring errors * Simpler tooling * Simple maintenance and repair * Recognized under the Component Program of Underwriters Laboratories Inc * Certified by Canadian Standards Association
