3-535512-0

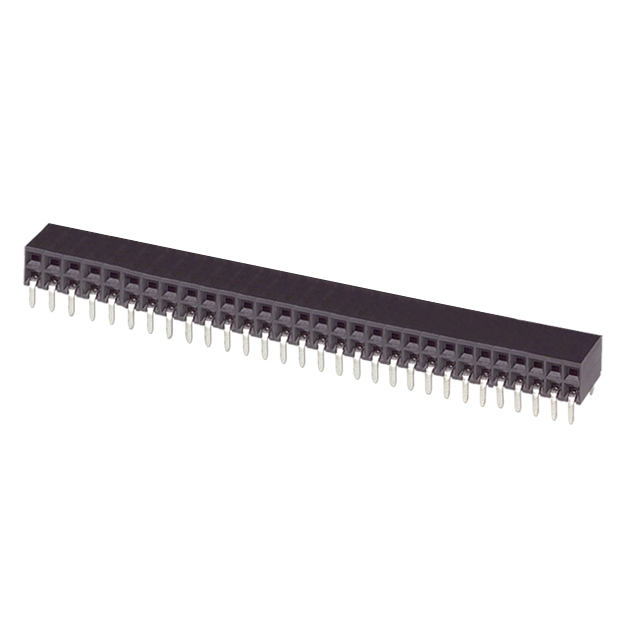

Conn Socket Strip SKT 60POS 2.54mm Solder RA Thru-Hole Gang of Tubes

60 Position Receptacle Connector Through Hole, Right Angle

得捷:
CONN RCPT 60POS 0.1 GOLD PCB R/A

艾睿:
TE Connectivity brings you their socket strip 3-535512-0 header connector, an important safety tool for protecting your electronic components from accidental damage. This SKT connector&s;s 60 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. Its pitch is 2.54 mm. It has a socket type gender. It has a right angle body orientation. This device has a maximum current rating of 2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 76.2 mm long, 6.05 mm tall and 8.13 mm deep. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. 3-535512-0 is housed in black polychlorinated terphenyl.

Verical:
Conn Socket Strip SKT 60 POS 2.54mm Solder RA Side Entry Thru-Hole Automotive Box/Tube

Newark:
# AMP - TE CONNECTIVITY  3-535512-0  60 MODII HORZ DR CE EESS .100

MASTER:
AMPMODU MOD II RECEPTACLE ASSEMBLY, HORIZONTAL, .100 CL, 2 ROW, CLOSED-ENTRY, SHORT POINT OF CONTACT, END-TO-END STACKABLE

Powell:
.100 inch AMPMODU Receptacles

Electro Sonic:
60 MODII HORZ DR CE EESS .100
