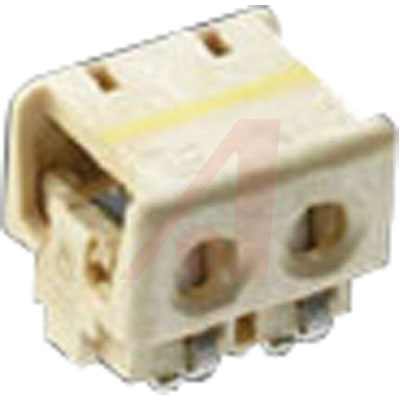

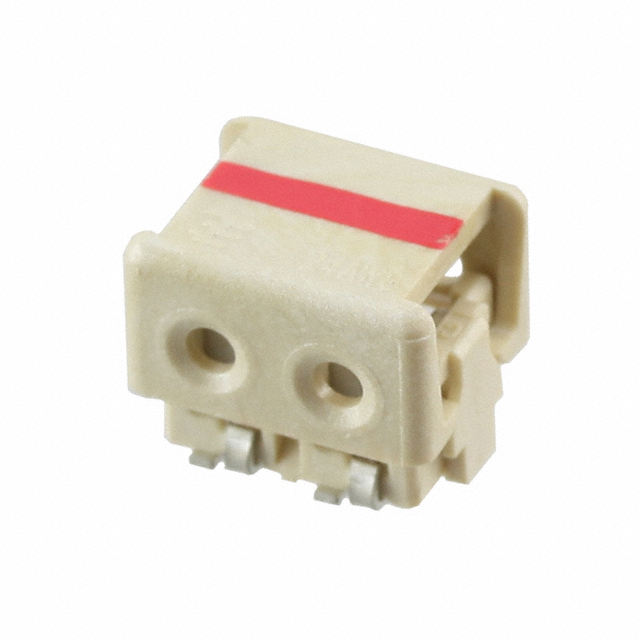

3-2106431-2

TE CONNECTIVITY  3-2106431-2  线至板连接器, 24 AWG, SSL系列, 2 触点, 插座, 4 mm, 表面安装　, 1 排

Tyco Electronics IDC SSL Closed End Connector.SMT and Thru-Hole18-24 AWG Stranded and Solid WireDual IDC Slots for RedundancyWire Placement Viewing WindowWire Gauge Color CodedTool-Less TerminationLED Lighting ControlsGeneral Illumination LED FixturesConnecting Strings of PCB LED Light ModulesNon-Lighting Wire-to-Board Applications

得捷:
CONN WIRE IDC 2POS 24AWG SMD RA

e络盟:
线至板连接器, 24 AWG, 4 mm, 2 触点, 插座, SSL系列, 表面安装　, 1 排

艾睿:
TE Connectivity brings you their idc ssl connector 3-2106431-2 header connector, an important safety tool for protecting your electronic components from accidental damage. This F connector&s;s 2 contacts that are made out of copper alloy and plated with tin over nickel. It has a maximum voltage rating of 250 VDC|250VAC. It has a straight body orientation. This is a 1-row connector. Its pitch is 4 mm. It has a female type gender. This device has a maximum current rating of 8 A/contact. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It uses the solder termination method. This product is 9.7 mm long, 8 mm tall and 7.75 mm deep. This connector has an operating temperature of -40 to 105 °C. 3-2106431-2 is housed in green liquid crystal polymer.

Allied Electronics:
Connector; Lighting; SMT-IDC Pass Thru; 2 POS; 24 AWG

安富利:
Conn IDC SSL Connector F 2 POS 4mm Solder ST SMD Pocket Tape

富昌:
IDC SSL 系列 2 位置 24 AWG 表面贴装 IDC 馈通 连接器

Chip1Stop:
Conn IDC SSL Connector F 2 POS 4mm Solder ST SMD Pocket Tape

Verical:
Conn IDC SSL Connector F 2 POS 4mm Solder ST SMD Box

Newark:
# TE CONNECTIVITY  3-2106431-2  Wire-To-Board Connector, 24 AWG, SSL Series, Surface Mount, Receptacle, 2, 4 mm

MASTER:
ASSEMBLY, IDC SSL CONNECTOR, SMT, PASS THRU

Powell:
Lighting Connectors 2 Position 24 AWG SMT IDC Feed Thru

Electro Sonic:
Connector, SMT-IDC PASS THRU, 2 POS, 24
