315-43-164-41-003000

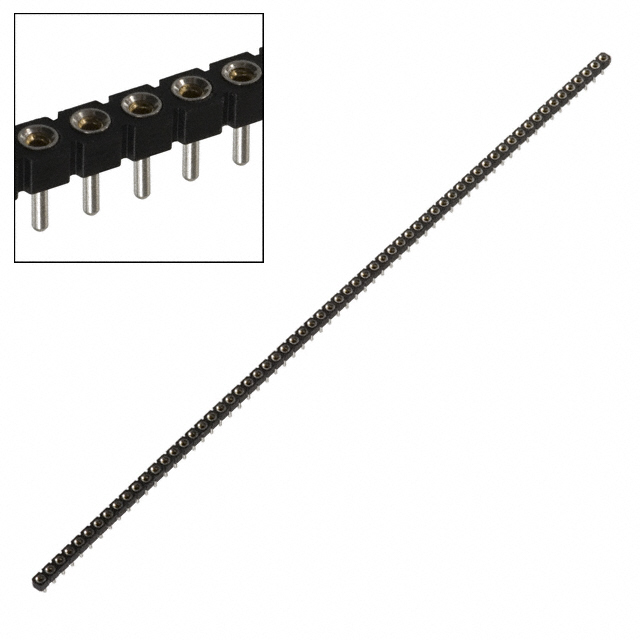

Conn SIP Socket Strip SKT 64POS 2.54mm Solder ST Thru-Hole

64 Position Receptacle Connector Through Hole

得捷:
CONN SOCKET 64PIN ULTRA LOPRO

艾睿:
Think of Mill-Max Mfg. Corp.&s;s sip socket strip 315-43-164-41-003000 header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This SKT connector&s;s 64 contacts that are made out of beryllium copper alloy and plated with gold over nickel. It has a straight body orientation. It has a socket type gender. It has a maximum voltage rating of 150 VDC|100VAC. Its pitch is 2.54 mm. This is a 1-row connector. This device has a maximum current rating of 3 A. This product is 162.56 mm long, 2.41 mm tall and 2.54 mm deep. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. 315-43-164-41-003000 is housed in black polychlorinated terphenyl.

Allied Electronics:
IC & Component Sockets 64 POS LOW PRO .1"

Chip1Stop:
Conn SIP Socket Strip SKT 64 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn SIP Socket Strip SKT 64 POS 2.54mm Solder ST Thru-Hole

Newark:
# MILL MAX  315-43-164-41-003000  IC & Component Socket, 315 Series, SIP Socket, 64 Contacts, 2.54 mm, Tin Plated Contacts
