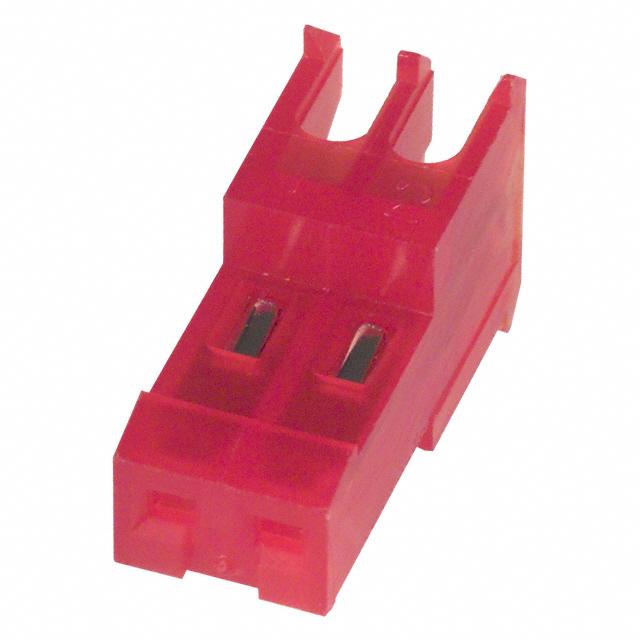

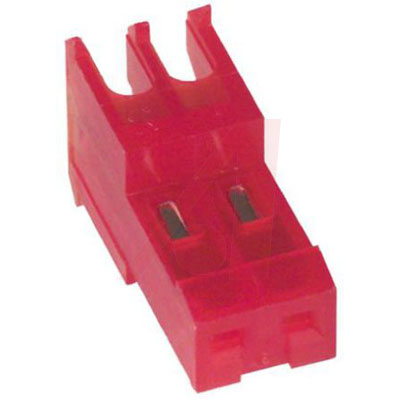

3-640620-2

AMP FROM TE CONNECTIVITY  3-640620-2  线至板连接器, IDC / IDT, 母, 2路

MTA-100 IDC Feed-Thru Connectors

得捷:
CONN RCPT 2POS IDC 22AWG TIN

立创商城:
插头插座

贸泽:
Headers & Wire Housings FEED THRU W/O TAB 2P red tin 22 AWG

e络盟:
线至板连接器, IDC / IDT, 母, 2路

艾睿:
Easily mount this idc connector 3-640620-2 header connector from TE Connectivity onto your PCB project to support a variety of physical configuration options. This F connector&s;s 2 contacts that are made out of copper alloy and plated with tin over nickel. This is a 1-row connector. It has a maximum voltage rating of 250 VAC. It has a female type gender. It has a right angle body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 5 A/contact. 3-640620-2 is housed in red nylon. It uses the idt termination method. This product is 5.08 mm long, 7.75 mm tall and 13.21 mm deep. This connector has an operating temperature of -55 to 105 °C.

Allied Electronics:
MTA-100 Series; Cable Mount IDC Connector Socket; 2 Way; 1 Row; 2.54mm Pitch

Chip1Stop:
Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount Loose Piece

Verical:
Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount Loose Piece

Newark:
# AMP - TE CONNECTIVITY  3-640620-2  Wire-To-Board Connector, 2.54 mm, 2 Contacts, Receptacle, MTA-100 Series, IDC / IDT, 1 Rows

MASTER:
MTA 100 CONNECTOR ASSEMBLY, 22 AWG, STANDARD

Electro Sonic:
02P MTA100 CONN ASSY F/T RED
