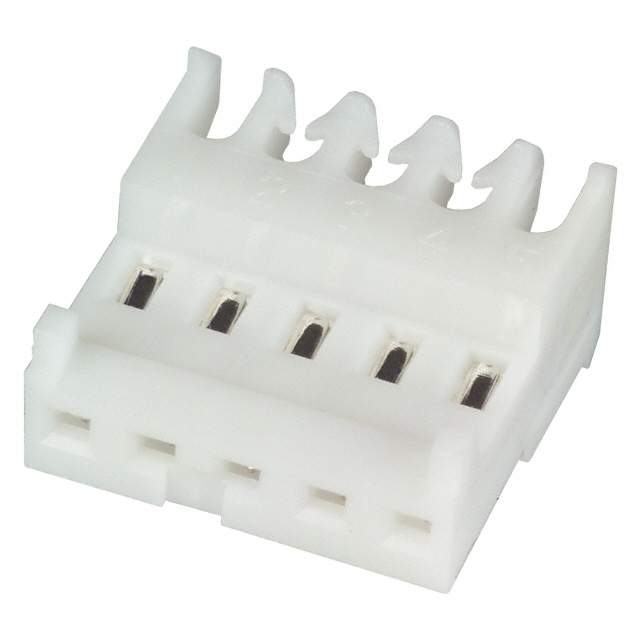

3-644563-5

集管和线壳 FEED THRU W/TAB 5P white tin 24 AWG

5 位置矩形连 插座 IDC 锡 24 AWG

得捷:
CONN RCPT 5POS IDC 24AWG TIN

贸泽:
集管和线壳 FEED THRU W/TAB 5P white tin 24 AWG

艾睿:
Use this idc connector 3-644563-5 connector from TE Connectivity when board-to-board interconnects is required. This F connector&s;s 5 contacts that are made out of copper alloy and plated with tin over nickel. It has a right angle body orientation. This is a 1-row connector. It has a maximum voltage rating of 250 VAC. Its pitch is 2.54 mm. It has a female type gender. This device has a maximum current rating of 5 A/contact. 3-644563-5 is housed in white nylon. It uses the idt termination method. This product is 12.7 mm long, 7.75 mm tall and 13.21 mm deep. This connector has an operating temperature of -55 to 105 °C.

安富利:
Conn IDC Connector F 5 POS 2.54mm IDT RA Cable Mount Loose Piece

Chip1Stop:
Conn IDC Connector F 5 POS 2.54mm IDT RA Cable Mount Loose Piece

Verical:
Conn IDC Connector F 5 POS 2.54mm IDT RA Cable Mount Box/Carton

Newark:
# AMP - TE CONNECTIVITY  3-644563-5  Wire-To-Board Connector, 2.54 mm, 5 Contacts, Receptacle, MTA-100 Series, IDC / IDT, 1 Rows

MASTER:
MTA-100 CONNECTOR ASSEMBLY, 24 AWG, STANDARD

Electro Sonic:
05P MTA100 CONN ASSY F/T 24AWG
