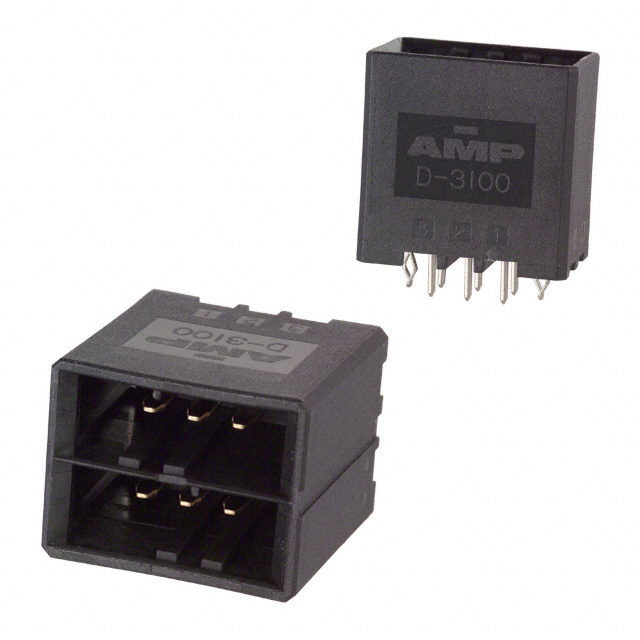

3-178141-3

间距3.81mm 行距7.62mm 6P2*3 XY键 黑色 垂直式 镀金0.76μm 推荐选用：3-178141-2

DYNAMIC 3100 HDR V 6P ASSY

得捷:
CONN HEADER VERT 6POS 3.81MM

艾睿:
Whether you have an AC or DC power entry module, this 3-178141-3 power connector from TE Connectivity comes in a variety of types to support all sorts of modules. This M connector&s;s 6 contacts that are made out of copper alloy and plated with gold over nickel. It has a male type gender. Its pitch is 3.81 mm. This connector has a single port. It has a maximum voltage rating of 250 VAC. It has a straight body orientation. 3-178141-3 is housed in nylon. This device has a maximum current rating of 10 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its 6 terminals use the solder termination method. This power connector has a minimum operating temperature of -55 °C and a maximum of 105 °C. This product is 21.62 mm long, 21.6 mm tall and 16.97 mm deep.

安富利:
Conn Power M 6 POS 3.81mm Solder ST Thru-Hole 6 Terminal 1 Port Tube

Chip1Stop:
Conn Power M 6 POS 3.81mm Solder ST Thru-Hole 6 Terminal 1 Port Tube

Verical:
Conn Shrouded Header HDR 6 POS 3.81mm Solder ST Top Entry Thru-Hole Box/Tube

MASTER:
DYNAMIC D-3100 3.81X7.62 PITCH V 6 POS. HDR CONN. ASS"Y

Powell:
Dynamic Series Connectors

Online Components:
DYNAMIC 3100 HDR V 6P ASSY

Electro Sonic:
DYNAMIC 3100 HDR V 6P ASSY
