316516-5

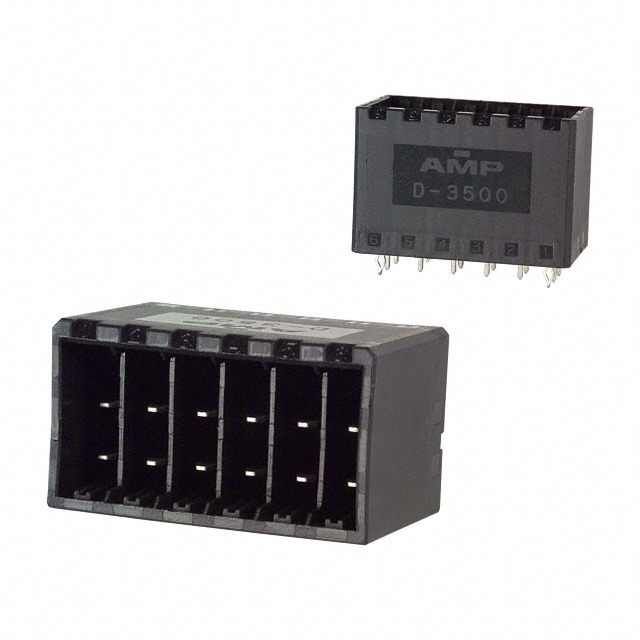

Dynamic D-3500 系列管座TE Connectivity Dynamic 系列的 D-3500 系列管座具有镀锡固定支脚，以提高稳定性。 D-3500 系列管座的印刷电路板焊接尾线为镀锡，触点插片为镀金。 这些 D-3500 系列管座的建议印刷电路板厚度为 1.0 至 1.6mm。### 注有关匹配的 D-3500 系列外壳，请参见典型库存号 680-1313。### TE Connectivity Dynamic 3000 系列### Tyco 动态 3000 系列

Dynamic D-3500 系列管座

Dynamic 系列的 D-3500 系列管座具有镀锡固定支脚，以提高稳定性。 D-3500 系列管座的印刷电路板焊接尾线为镀锡，触点插片为镀金。 这些 D-3500 系列管座的建议印刷电路板厚度为 1.0 至 1.6mm。

### 注

有关匹配的 D-3500 系列外壳，请参见典型库存号 680-1313。

欧时:
TE Connectivity PCB 针座 Dynamic 3000 系列 12路 5.08mm节距 直向 316516-5, 焊接端接, 通孔

得捷:
CONN HEADER VERT 12POS 5.08MM

立创商城:
针座

艾睿:

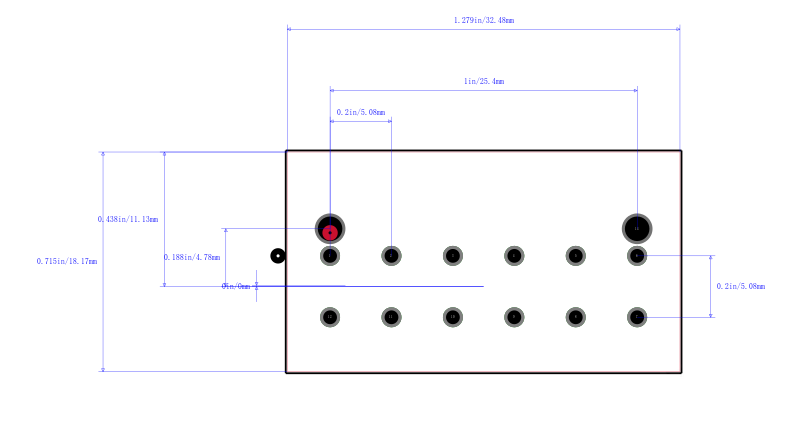

This robust 316516-5 power connector from TE Connectivity easily retains normal operation in harsh and stressful environments. This M connector&s;s 12 contacts that are made out of copper alloy and plated with tin over nickel. It has a straight body orientation. It has a male type gender. It has a maximum voltage rating of 600 VAC. This connector has a single port. Its pitch is 5.08 mm. 316516-5 is housed in thermoplastic. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. Its 12 terminals use the solder termination method. This product is 32.48 mm long, 21.6 mm tall and 18.17 mm deep. This power connector has a minimum operating temperature of -55 °C and a maximum of 105 °C.

Allied Electronics:
Dynamic 3000 Series, 5.08mm Pitch 12 Way Straight PCB Header, Solder Termination

安富利:
Conn Power M 12 POS 5.08mm Solder ST Thru-Hole 12 Terminal 1 Port Tube

Chip1Stop:
Conn Power M 12 POS 5.08mm Solder ST Thru-Hole 12 Terminal 1 Port Tube

Verical:
Conn Power M 12 POS 5.08mm Solder ST Thru-Hole 12 Terminal 1 Port Box/Tube

Newark:
# AMP - TE CONNECTIVITY  316516-5  DYNAMIC 3500 HDR ASSY 12P V New

MASTER:
Conn Power M 12 POS 5.08mm Solder ST Thru-Hole 12 Terminal 1 Port Box/Tube

Powell:
Dynamic Series Connectors

Electro Sonic:
Conn Power M 12 POS 5.08mm Solder ST Thru-Hole 12 Terminal 1 Port Box/Tube
