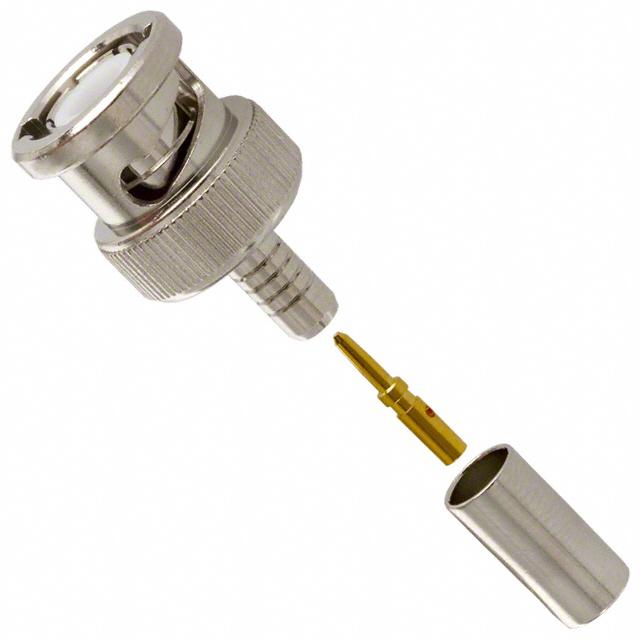

31-320图片15
31-320概述

AMPHENOL RF  31-320  射频/同轴连接器, BNC同轴, 直型插头, 压接, 50 ohm

The is a RF Connector, BNC series, BNC straight Crimp Plug with gold-plated brass contacts and crimp contact termination. Body made up of brass with nickel-plated finish and PTFE insulator. The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. The 50ohm BNC connector is miniature and lightweight units. Designed to accommodate a large variety of RG and industry standard cables. This RF connector is designed for Belden 9907, Belden B7806A, LMR-195, RG-141, RG-303 and RG-58 cable.

.
Standard polarity
.
5000MR Minimum insulation resistance
.
500 Mating cycles
.
-65 to 165°C Temperature range
31-320中文资料参数规格
技术参数

极性 Male

触点电镀 Gold

绝缘电阻 5000 MΩ

拔插次数 500

工作温度Max 165 ℃

工作温度Min -65 ℃

额定电压Max 500 VAC

额定电压 500 V

外形尺寸

长度 28.2 mm

物理参数

外壳颜色 Silver

触点材质 Brass

工作温度 -65℃ ~ 165℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 车用, Communications & Networking, 传感与仪器, Medical, 通信与网络, Sensing & Instrumentation, RF Communications, 射频通信, 计算机和计算机周边, Automotive, 医用, Computers & Computer Peripherals

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买31-320
型号: 31-320
描述:AMPHENOL RF  31-320  射频/同轴连接器, BNC同轴, 直型插头, 压接, 50 ohm
