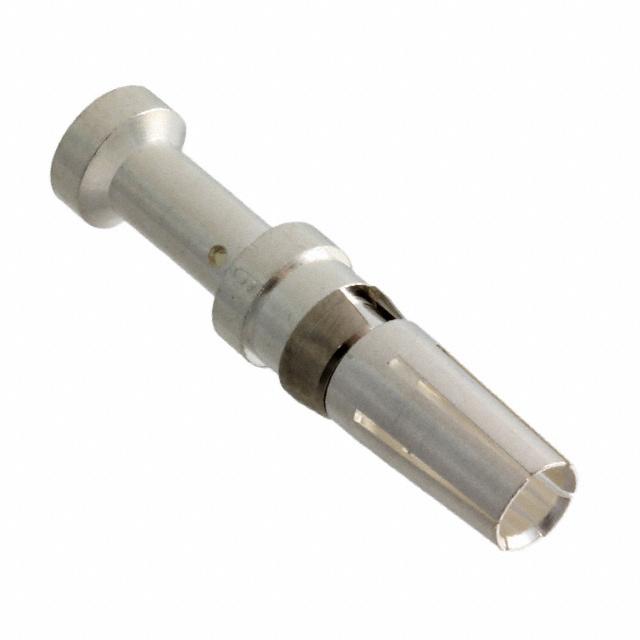

3-1108756-1

3-1108756-1图片1
3-1108756-1图片2
3-1108756-1图片3
3-1108756-1图片4
3-1108756-1图片5
3-1108756-1图片6
3-1108756-1图片7
3-1108756-1图片8
3-1108756-1概述

CONN SOCKET 11AWG SILVER

触头 压接 插口 11 AWG 银


得捷:
CONTACT H.D. CRIMP SOCKET 11AWG


艾睿:
Make the perfect wired connection with this 3-1108756-1 connector contact from TE Connectivity, a simple and effective form of connection binding. It has a straight body orientation. It has a socket type gender. This has a Connector Rectangular connector. This product is 28.25 mm long, 6.2 mm tall and 6.2 mm deep. It uses the crimp termination method. Its wire is 11 AWG.


安富利:
Contact SKT Crimp ST Cable Mount Loose Piece


Verical:
Contact SKT Crimp ST Cable Mount 11AWG Bag


MASTER:
Contact SKT Crimp ST Cable Mount 11AWG Bag


Powell:
Heavy Duty Connectors


Online Components:
HSK.Bu.C.4,0 qmm


Electro Sonic:
Contact SKT Crimp ST Cable Mount 11AWG Bag


3-1108756-1中文资料参数规格
技术参数

极性 Female

线规 11 AWG

触点电镀 Silver

额定电流Max 40 A

接触电阻Max 3 mΩ

外形尺寸

高度 6.2 mm

物理参数

触点材质 Copper Alloy

其他

产品生命周期 Active

包装方式 Bag

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

ELV标准 Compliant

海关信息

ECCN代码 EAR99

HTS代码 8538908040

数据手册

在线购买3-1108756-1
型号: 3-1108756-1
描述:CONN SOCKET 11AWG SILVER
