TE Connectivity 印刷电路板测试探头插座3 安装支架 适用于印刷电路板 镀金触点,接合区,材料 带漏斗形引入口 ### TE Connectivity 离散印刷电路板连接
尖头插孔 连接器 标准端头 焊接 白色
得捷:
CONN TIP JACK SOLDER WHITE
欧时:
### TE Connectivity 印刷电路板测试探头插座3 安装支架 适用于印刷电路板 镀金触点,接合区,材料 带漏斗形引入口 ### TE Connectivity 离散印刷电路板连接
贸泽:
Test Probes TST P REC130 LO BI WHT GPBR
艾睿:

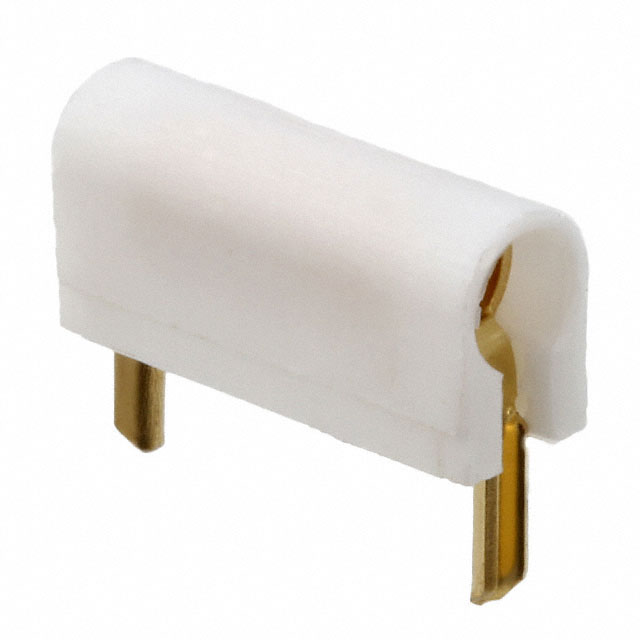

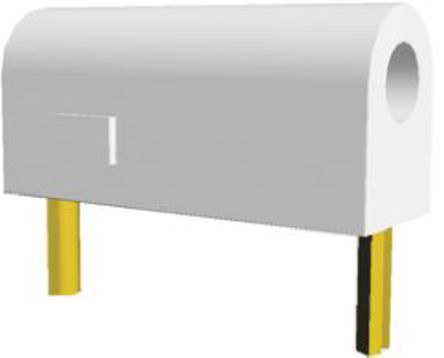

The easy-to-use test probe 3-582118-9 test terminal block from TE Connectivity makes it possible to test any abnormal connections your application may have. This RCP connector&s;s 2 contacts that are made out of beryllium copper and plated with gold. It has a receptacle type gender. It has a right angle body orientation. This connector has a single port. It uses the solder termination method. This test terminal block has a minimum operating temperature of -55 °C and a maximum of 85 °C. 3-582118-9 is housed in white nylon. This product is 11.68 mm long, 5.84 mm tall and 4.44 mm deep.
Allied Electronics:
Test Probe Receptacle, 2 mounting legs
安富利:
Conn Test Probe RCP 2 POS Solder RA Thru-Hole 1 Port
Verical:
Conn Test Probe RCP 2 POS Solder RA Thru-Hole 1 Port
Newark:
# AMP - TE CONNECTIVITY 3-582118-9 TEST PROBE ASSEMBLY, PCB
MASTER:
ASSEMBLY, TEST PROBE
Powell:
Test Probe Receptacles
Electro Sonic:
TEST PROBE REC130 BI WHT GPBR
触点数 2
极性 Female
触点电镀 Gold
工作温度Max 85 ℃
工作温度Min -55 ℃
安装方式 Through Hole
长度 11.68 mm
宽度 4.45 mm
高度 5.84 mm
外壳颜色 White
颜色 White
触点材质 Beryllium Copper
材质 Nylon
工作温度 -55℃ ~ 85℃
外壳材质 Nylon
产品生命周期 Active
包装方式 Bulk
制造应用 Signal, Power
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
