POMONA 3548-0 连接器适配器, 迷你香蕉, 1 路, 插座, 针头, 1 路, 插头
连接器 尖头插头 至 香蕉式插孔,微型 黑色
得捷:
ADAPT TIP PLUG TO MINI BAN JACK
立创商城:
3548-0
e络盟:
连接器适配器, 迷你香蕉, 1 路, 插座, 针头, 1 路, 插头
艾睿:

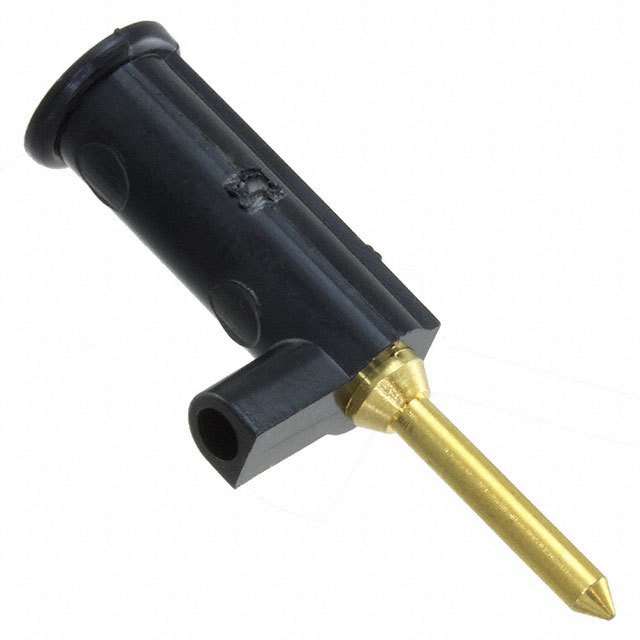

Never worry about not being able to perform test by using this banana-tip plug adapter 3548-0 test terminal block from Pomona. This F/PIN connector&s;s 1 / 1 contacts that are made out of brass and plated with gold. This connector has a single port. It has a straight body orientation. This device has a maximum current rating of 5 A. 3548-0 is housed in black acrylonitrile butadiene styrene. This product is 33.27 mm long, 12.06 mm tall and 7.87 mm deep. This test terminal block has a maximum operating temperature of 50 °C.
Allied Electronics:
PLUG PIN TIP W/SHIELD DIY BLACK
Verical:
Conn Banana-Tip Plug Adapter F/PIN 1/1 POS ST 1 Port
Newark:
# POMONA 3548-0 Connector Adaptor, Mini Banana, 1 Positions, Jack, Pin Tip, 1 Positions, Plug
触点电镀 Gold
额定电流 5 A
额定电流Max 5 A
工作温度Max 50 ℃
额定电压 300 V
封装 -
长度 33.27 mm
高度 12.06 mm
封装 -
外壳颜色 Black
颜色 Black
触点材质 Brass
工作温度 50 ℃
产品生命周期 Active
包装方式 Bulk
制造应用 工业, 军用与航空, 国防, Aerospace, Defence, Military, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
