D-Sub混合触点连接器 7W2 SOLDER CUP FEMALE R/A 20 AMP

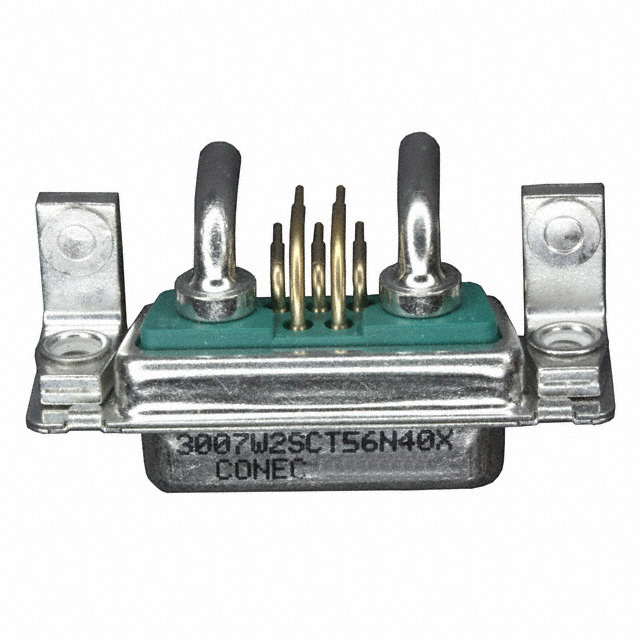

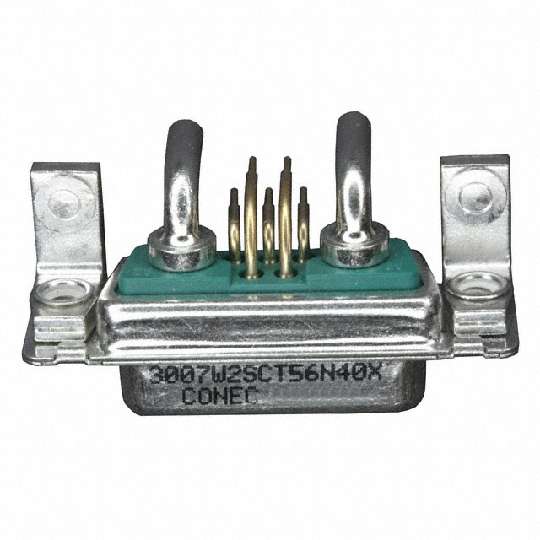

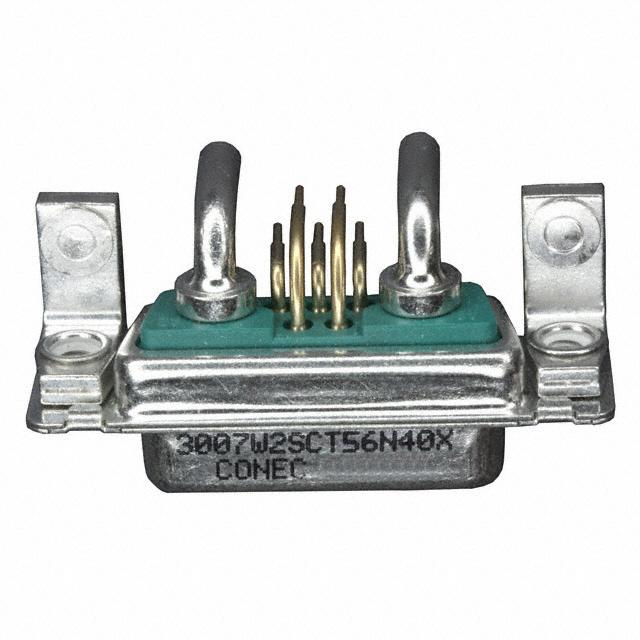

Using the DVI connector from is fast and easy for communicating between serial connections in your circuit. This connector has a single port. This socket type connector"s 2power / 5signal contacts that are made out of copper alloy and plated with gold over nickel. It has a right angle body orientation. 3007W2SCT56N40X is housed in polybutylene terephthalate. Its 7 terminals use the solder termination method. This product is 39.52 mm long, 12.93 mm tall and 20.17 mm deep.
极性 Female
线规 20.0 AWG
触点电镀 Gold
额定电流 5A, 20A
排数 2
易燃性等级 UL 94 V-0
针脚数 7
拔插次数 500
额定电流Max 20 A
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 250 V
额定电压 250 V
工作电压Max 250 V
接触电阻Max 1 mΩ
安装方式 Through Hole
长度 39.52 mm
宽度 20.17 mm
高度 12.93 mm
外壳颜色 Green
颜色 Green
触点材质 Copper Alloy
工作温度 -55℃ ~ 125℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
