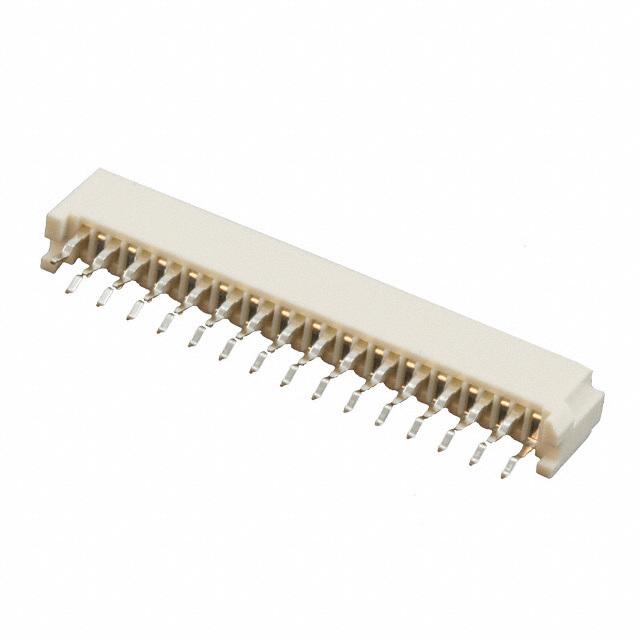

3-84534-0

Conn FFC Connector SKT 30POS 2.5mm Solder ST Thru-Hole Tray

30 位置 FFC 触头，垂直 - 单侧 0.049"（1.25mm） 通孔

得捷:
CONN FFC VERT 30POS 1.25MM PCB

艾睿:

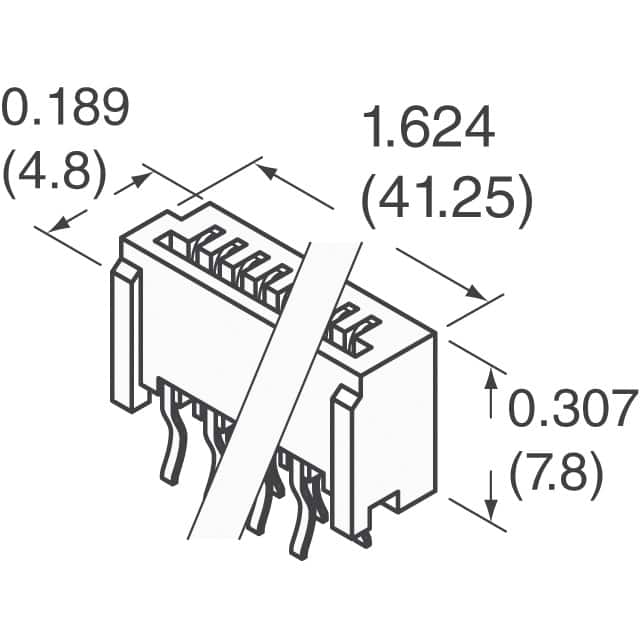

TE Connectivity&s;s ffc connector 3-84534-0 flexible flat cable is a great option to consider when working with tightly constrained electronics projects. This socket type connector&s;s 30 contacts that are made out of phosphor bronze and plated with tin. It has a straight body orientation. Its pitch is 1.25 mm. It has a maximum voltage rating of 50 VAC. This is a 1-row connector. This device has a maximum current rating of 1 A/contact. The item will be shipped in tray orientation. This product is 41.25 mm long, 7.8 mm tall and 4.8 mm deep. It uses the solder termination method. 3-84534-0 is housed in white polybutylene terephthalate. This flexible flat cable has an operating temperature of -20 to 80 °C.

安富利:
Conn FFC Connector SKT 30 POS 2.5mm Solder ST Thru-Hole Tray

Chip1Stop:
Conn FFC Connector SKT 30 POS 1.25mm Solder ST Thru-Hole Tray

Verical:
Conn FFC Connector SKT 30 POS 1.25mm Solder ST Thru-Hole Box/Tray

Newark:
# AMP - TE CONNECTIVITY  3-84534-0  1.25MM FFC POST PLATED V 30P New

MASTER:
ASSY, 1.25mm FFC CONN, VERTICAL POST PLATED

Powell:
FPC Flexible Printed Circuit Connectors

Electro Sonic:
1.25MM FFC POST PLATED V 30P
