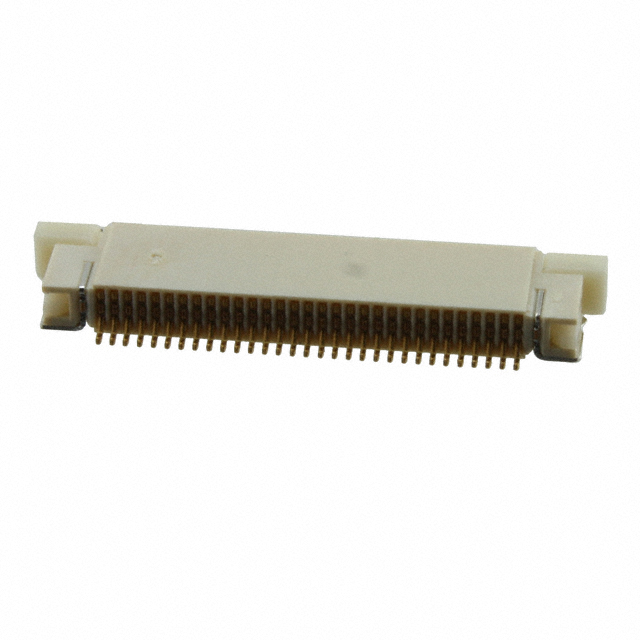

AMP FROM TE CONNECTIVITY 3-1734839-1 连接器, FPC, 母 31路 0.5MM节距
Optimize the design of a space-limited electronic device with this fpc connector flexible printed circuit from . This socket type connector"s 31 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. This is a 1-row connector. Its pitch is 0.5 mm. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 20.93 mm long, 2.05 mm tall and 5.1 mm deep. 3-1734839-1 is housed in natural thermoplastic. It uses the solder termination method.
触点数 31
极性 Female
触点电镀 Gold
额定电流 500 mA
排数 1
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 31
屏蔽 No
额定电流Max 0.5A/触头
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 250 VAC
额定电压 250 V
安装方式 Surface Mount
长度 20.93 mm
宽度 5.1 mm
高度 2.05 mm
外壳颜色 Natural
触点材质 Phosphor Bronze
工作温度 -20℃ ~ 85℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
