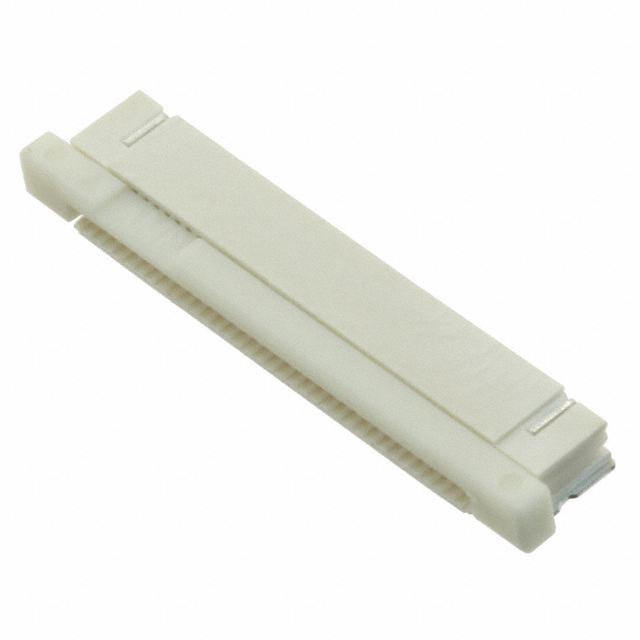

AMP FROM TE CONNECTIVITY 3-1734592-5 连接器, FPC, 母 35路 0.5MM节距
FPC CONN. 0.5MM PITCH B/C, 35P
得捷:
CONN FPC BOTTOM 35POS 0.5MM R/A
贸泽:
FFC & FPC连接器 FPC CONN. 0.5MM PITCH B/C 35P
e络盟:
连接器, FPC, 母 35路 0.5MM节距
艾睿:
Use this fpc connector 3-1734592-5 flexible flat cable from TE Connectivity in tightly constrained electronics projects. This socket type connector&s;s 35 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 0.5 mm. It has a right angle body orientation. It has a maximum voltage rating of 250 VAC. This is a 1-row connector. This device has a maximum current rating of 0.5 A/contact. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It uses the solder termination method. This flexible flat cable has an operating temperature of -20 to 85 °C. This product is 22.93 mm long, 2.05 mm tall and 5.1 mm deep. 3-1734592-5 is housed in natural liquid crystal polymer.
安富利:
Conn FPC Connector SKT 35 POS 0.5mm Solder RA SMD T/R
Chip1Stop:
Conn FPC Connector SKT 35 POS 0.5mm Solder RA SMD T/R
Verical:
Conn FPC Connector SKT 35 POS 0.5mm Solder RA SMD T/R
Newark:
# AMP - TE CONNECTIVITY 3-1734592-5 FFC / FPC Board Connector, 0.5 mm, 35 Contacts, Receptacle, FPC Series, Surface Mount, Bottom
MASTER:
FPC CONNECTOR, 0.5mm PITCH, BOTTOM CONTACT, SMT TYPE.
Powell:
FPC Connectors
Online Components:
FPC CONN. 0.5MM PITCH B/C, 35P
Electro Sonic:
FPC CONN. 0.5MM PITCH B/C, 35P
触点数 35
极性 Female
触点电镀 Gold
绝缘电阻 50 MΩ
排数 1
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 35
屏蔽 No
额定电流Max 0.5A/触头
工作温度Max 85 ℃
工作温度Min -20 ℃
额定电压Max 250 VAC
额定电压 250 V
接触电阻Max 35 mΩ
安装方式 Surface Mount
封装 SMD
长度 22.93 mm
宽度 5.1 mm
高度 2.05 mm
封装 SMD
外壳颜色 Natural
触点材质 Phosphor Bronze
工作温度 -20℃ ~ 85℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
3-1734592-5 TE Connectivity 泰科 | 当前型号 | 当前型号 |
54104-3596 莫仕 | 功能相似 | 3-1734592-5和54104-3596的区别 |
68713514022 伍尔特 | 功能相似 | 3-1734592-5和68713514022的区别 |
XF2M35151A 欧姆龙 | 功能相似 | 3-1734592-5和XF2M35151A的区别 |
