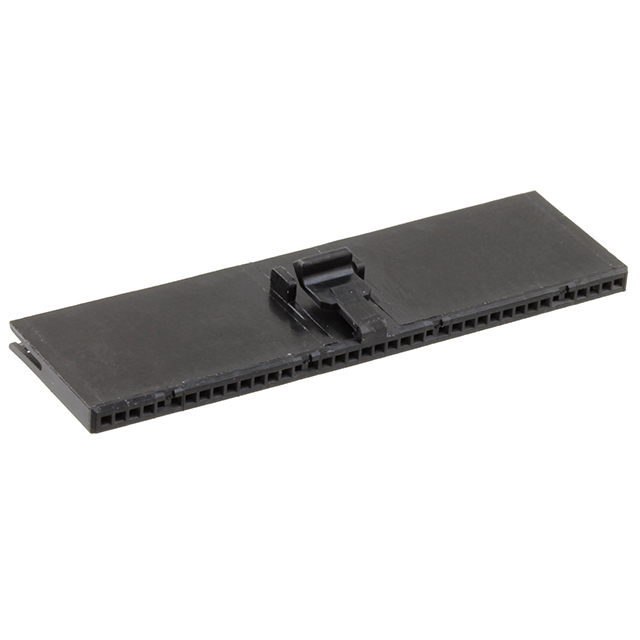

3-487545-7

AMP FROM TE CONNECTIVITY  3-487545-7  连接器, FFC/ FPC板, AMPMODU System 50 Series, 40 触点, 插座, 1.27 mm

Housing FFC Housing for Female Contacts Connector Latch Lock 40Pos 0.050" 1.27mm

得捷:
CONN FFC RCPT HSG 40POS 1.27MM

e络盟:
AMP FROM TE CONNECTIVITY  3-487545-7  连接器, FFC/ FPC板, AMPMODU System 50 Series, 40 触点, 插座, 1.27 mm

艾睿:
When using discrete wires in a project you should use this 3-487545-7 discrete wire housing from TE Connectivity if a direct socket to board linkage is not functional. This RCP connector has 40 RCP contacts. Its pitch is 1.27 mm. This is a 1-row connector. It has a straight body orientation. It has a receptacle type gender. This product is 51.89 mm long, 6.22 mm tall and 14.85 mm deep. 3-487545-7 is housed in black thermoplastic. This rectangle connector has an operating temperature of -55 to 105 °C.

Verical:
Conn Housing RCP 40 POS 1.27mm Crimp ST Cable Mount Black Carton

Newark:
# AMP - TE CONNECTIVITY  3-487545-7  FFC / FPC Board Connector, AMPMODU System 50 Series, Receptacle, 40, 1.27 mm

MASTER:
HOUSING, RECEPTACLE, .050 C/L

Powell:
.050 X .100 AMPMODU System 50

GOPHER:
Flexible Film Connector 40 POSITION .050 CENTERLINE RECEPT HOUSING LATCHING NOT PRE-LOADED WITH CONTACTS

Electro Sonic:
040 HOUSING FFC RCPT 050CL SR
