31-5431

AMPHENOL RF  31-5431  射频/同轴连接器, BNC同轴, 直角隔板安装插座, 焊接, 50 ohm, RG58, RG59, RG179, RG316, 磷青铜

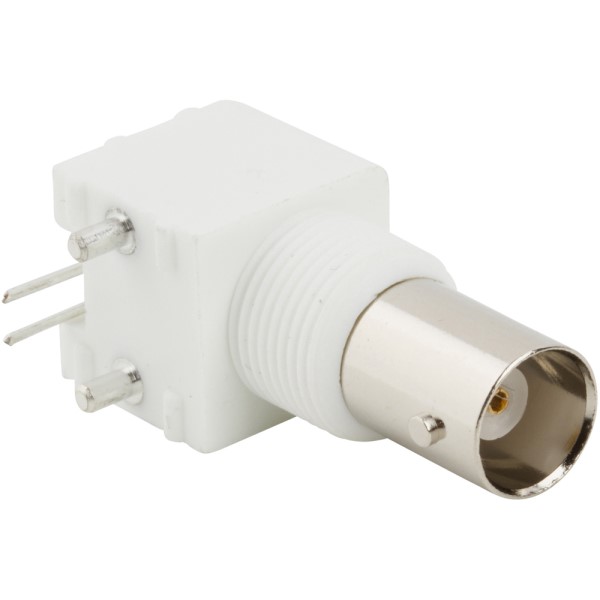

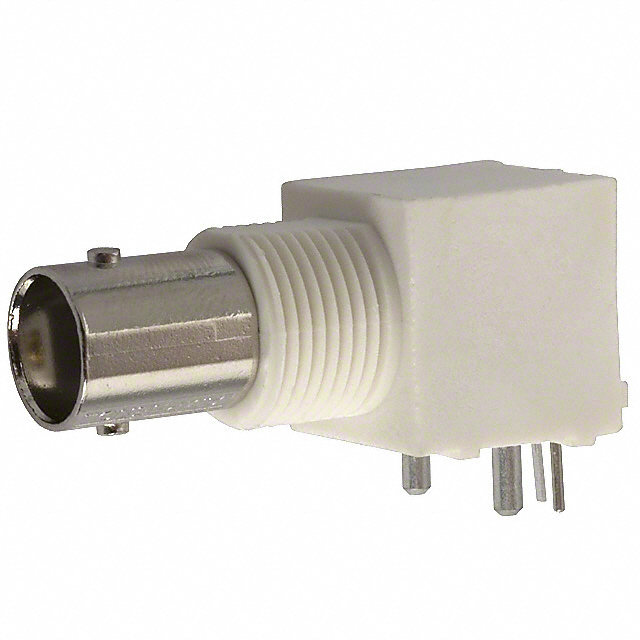

The is a RF Connector, BNC series, BNC right angle PCB Jack with gold-plated phosphor bronze contacts and solder contact termination. Body made up of zinc die-cast with nickel-plated finish and polypropylene insulator. The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. The 50ohm BNC connector is miniature and lightweight units. Designed to accommodate a large variety of RG and industry standard cables.

.

Standard polarity

.

5000MR Minimum insulation resistance

.

500 Mating cycles

.

-55 to 85°C Temperature range
