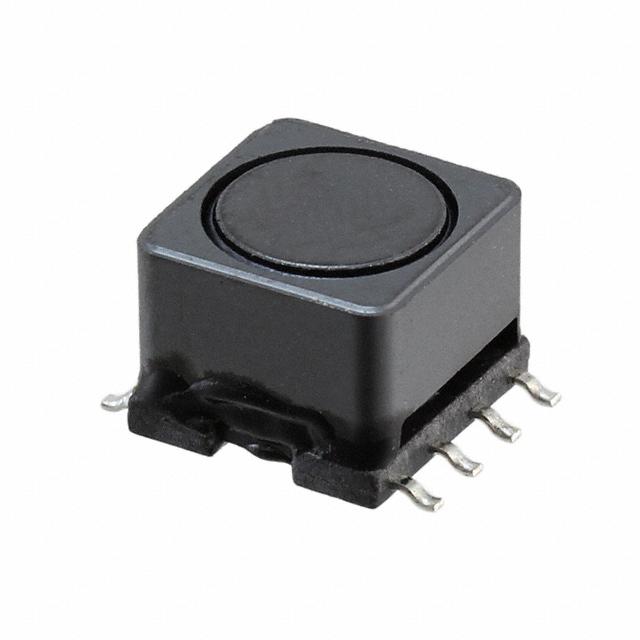

TE CONNECTIVITY / SIGMA INDUCTORS 3632B102LL 表面贴装功率电感器, 3632系列, 1 mH, ± 15%, 屏蔽, 2.5 ohm, 300 mA
The 3632 series SMD shielded Power Inductor offers a range of high-current suitable for a broad range of Industrial applications. The low profile package makes this product very effective in space - conscious applications and designs. These inductors are frequently chosen for new applications in power supply design.
- .
- Ferrite core
- .
- High reliability
- .
- Wide value range up to 15000µH
- .
- Up to 5.6A
额定电流 300 mA
容差 ±15 %
电感 1 mH
自谐频率 1.8 MHz
Q值 85.0
电阻 2.50 Ω
共振频率 1.80 MHz
屏蔽 Yes
电感公差 ±15 %
测试频率 1 kHz
电阻DC） 2.5 Ω
工作温度Max 105 ℃
工作温度Min -25 ℃
电阻DC Max 2.5 Ω
安装方式 Surface Mount
引脚数 8
封装 10.5mm x 9.5mm x 7.5mm
长度 10.5 mm
宽度 9.5 mm
高度 7.8 mm
封装 10.5mm x 9.5mm x 7.5mm
工作温度 -25℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, Industrial, Power Management, 电源管理
RoHS标准 RoHS Compliant
含铅标准 无铅
ELV标准 Compliant
ECCN代码 EAR99
