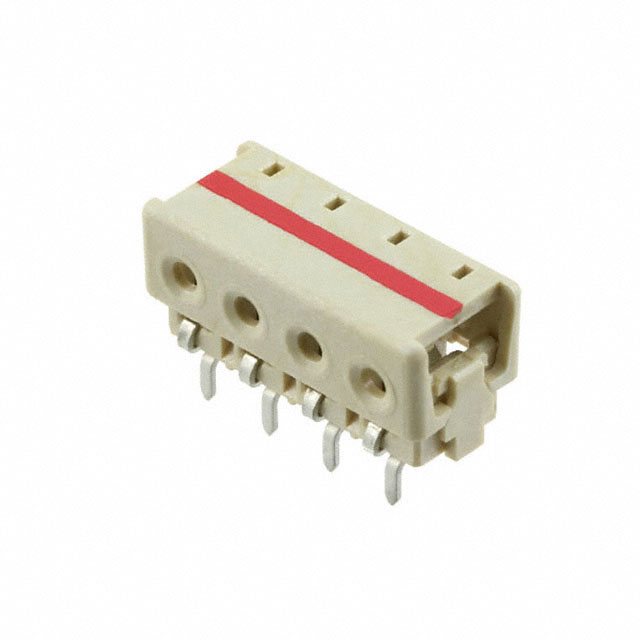

3-2106489-4

TE CONNECTIVITY 3-2106489-4 Wire-To-Board Connector, 24AWG, 4mm, 4Contacts, Receptacle, Through Hole, 1Rows

4 位置 单条导线 天然 IDC 24 AWG 通孔，直角

得捷:
CONN WIRE IDC 4POS 24AWG PCB RA

艾睿:
TE Connectivity&s;s idc connector 3-2106489-4 header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. It has a maximum voltage rating of 250 VDC|250VAC. It has a right angle body orientation. Its pitch is 4 mm. This is a 1-row connector. This device has a maximum current rating of 6 A/contact. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It uses the solder termination method. This product is 17.7 mm long, 5.8 mm tall and 7.75 mm deep. This connector has an operating temperature of -40 to 105 °C. 3-2106489-4 is housed in red liquid crystal polymer.

安富利:
Conn IDC Connector M 4 POS 4mm IDT RA Cable Mount Tape

Chip1Stop:
Conn IDC Connector 4 POS 4mm Solder RA Thru-Hole T/R

Verical:
Conn IDC Connector 4 POS 4mm Solder RA Thru-Hole T/R

Newark:
# TE CONNECTIVITY  3-2106489-4  Wire-To-Board Connector, 4 mm, 4 Contacts, Receptacle, SSL Series, Through Hole, 1 Rows

MASTER:
ASSEMBLY, IDC SSL CONNECTOR, THROUGH HOLE, CLOSED END

Powell:
Lighting Connectors 4 Position 24 AWG Thru Hole Closed End

Electro Sonic:
Connector, Thru Hole-IDC, 4 pos, 24AWG
