30J50RE概述

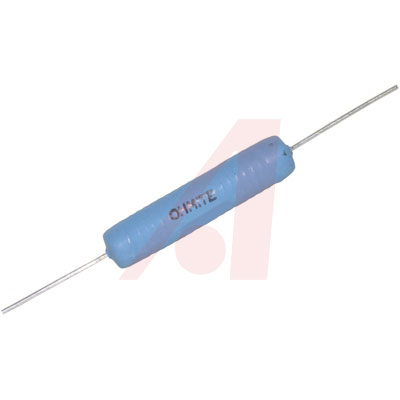

OHMITE  30J50RE  通孔电阻器, 30系列, 50 ohm, 10 W, ± 5%, 1 kV, 轴向引线

The High Energy Wirewounds are hand wound in order to maintain the tightest possible pitch space between windings and thereby maximize the mass of the resistive element. Since no wire substitutions are allowed, and no abrasive adjusting is permitted in this family, Ohmite can publish a fixed joule rating and fusing current for each part in this series.
.
* Features: **Three standard offerings in three different package types — axial, SMD, and heat sinkable. Other sizes and types can be quoted on request, such as tubular power resistors.
30J50RE中文资料参数规格
技术参数

额定电压DC 1.00 kV

额定功率 10 W

产品系列 30

电阻 50 Ω

阻值偏差 ±5 %

额定电压 1 kV

封装参数

安装方式 Through Hole

引脚数 2

封装 轴向引线

外形尺寸

长度 46.8 mm

宽度 10.3 mm

直径 10.3 mm

脚长度 38.1 mm

封装 轴向引线

其他

产品生命周期 Active

包装方式 Bulk

最小包装 250

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8533210080

数据手册

30J50RE引脚图与封装图
30J50RE引脚图

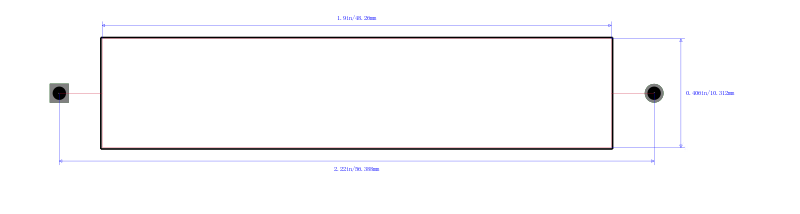

30J50RE封装图
30J50RE封装焊盘图
