100mW 4mm 半密封 3204 系列线性 小尺寸（标称 4 平方毫米外壳） 终端布局防止焊点桥接 密封，针对液体和波焊形成保护，直到拆掉硅酮 螺丝刀插槽调整 Power | 100mW ---|--- Effective Travel | 1 Turn Nominal Resistance Tolerance | ±25% Maximum Operating Voltage | 50Vdc Temperature Co-efficient | ±250ppm/°C -30°C to 100°C Electrical Rotation | 250° ±20° Operating Torque | 2 to 20mNm Rotational Life | 20 Cycles Operating Temperature | -20°C → +85°C Contact Resistance Variation | Dimensions L x W x H | 4.5 x 4.0 x 2.4 mm ### 单转 - 表面安装 - 金属陶瓷

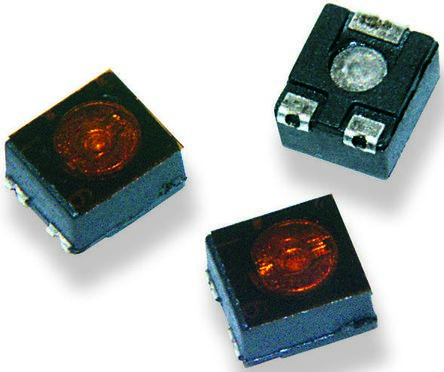

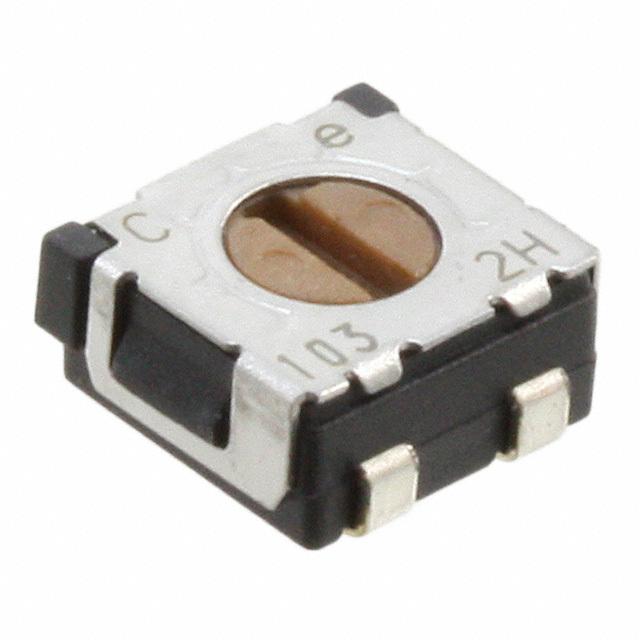

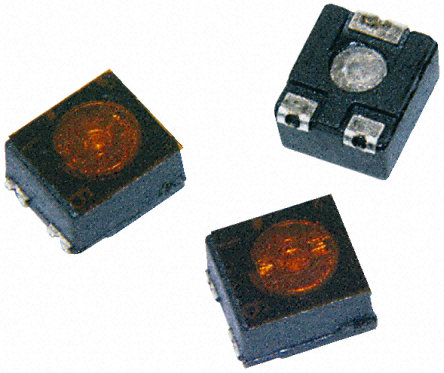

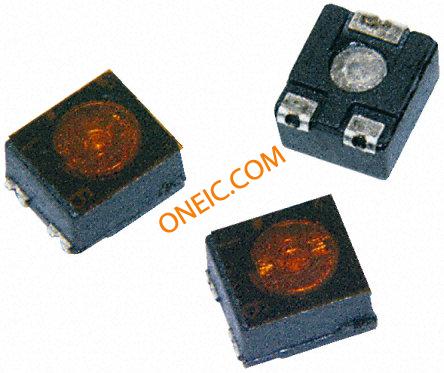

100mW 4mm 半密封 3204 系列
线性
小尺寸（标称 4 平方毫米外壳）
终端布局防止焊点桥接
密封，针对液体和波焊形成保护，直到拆掉硅酮
螺丝刀插槽调整
Power | 100mW
---|---
Effective Travel | 1 Turn Nominal
Resistance Tolerance | ±25%
Maximum Operating Voltage | 50Vdc
Temperature Co-efficient | ±250ppm/°C -30°C to 100°C
Electrical Rotation | 250° ±20°
Operating Torque | 2 to 20mNm
Rotational Life | 20 Cycles
Operating Temperature | -20°C → +85°C
Contact Resistance Variation | <10Ω below 1kΩ, 1% above 1kΩ
Dimensions L x W x H | 4.5 x 4.0 x 2.4 mm
