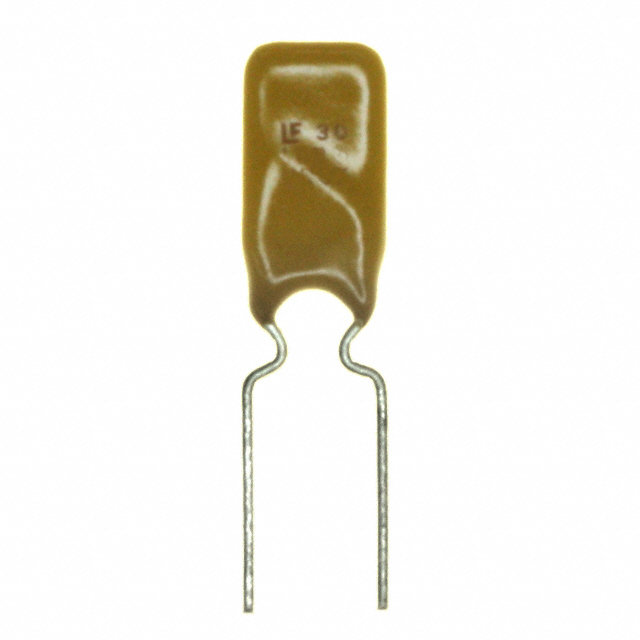

LITTELFUSE 30R110UPR 保险丝, PTC 自复式, 30V, 1.1A, 径向引线
Resuming operation after a fuse burns out has never been more convenient with this PTC resettable fuse from ! This device has a maximum current rating of 40. This part has a lead diameter of 0.51 mm. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. This product is 7.4Max mm long, 14.2Max mm tall and 3Max mm deep. This product"s terminal pitch is 5.1typ mm.
额定电压DC 30.0 V
工作电压 30 VDC
跳闸时间 6.6 s
额定电流 1.10 A
耗散功率 0.7 W
电阻 0.17 Ω
保持电流 1.1 A
跳闸电流 2.2 A
额定电流Max 40 A
保持电流Max 1.1 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 30 VDC
额定电压 30 V
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
长度 14.2 mm
宽度 7.4 mm
高度 14.2 mm
封装 Radial, Disc
厚度 3.05 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Ammo Pack
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
