POMONA 3561-2 连接器适配器, 香蕉, 1 路, 插座, 插座头, 1 路

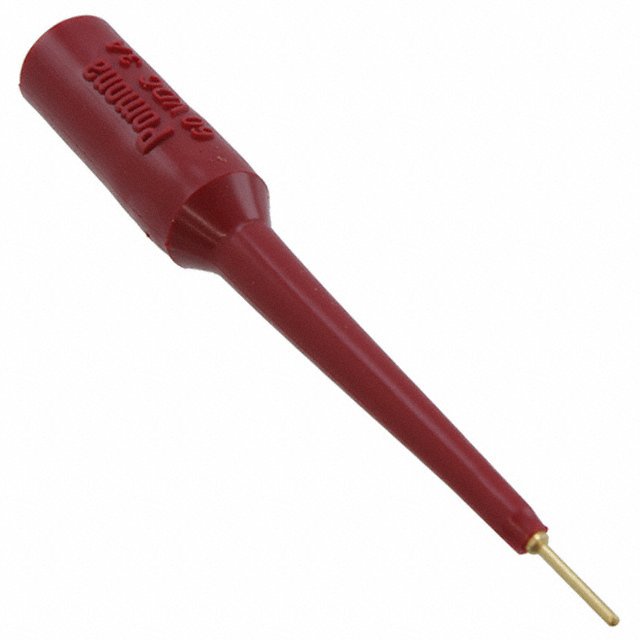

The is a red Banana Jack to 20AWG Pin Test Adapter, ideal test adapter for rapid testing of the hard-to-get to sockets of multi-socket connectors. Banana jack is made of brass with bright tin plated finish and polyvinyl chloride PVC insulation. Pin is made of brass with gold plated over nickel finish.
- .
- Flexible tip allows testing of adjacent contacts
- .
- Full insulation protects against shorting or contact damage
触点数 1
极性 Male
线规 20.0 AWG
触点电镀 Gold over Nickel, Gold
额定电压DC 2.50 kV
额定电流 7.5 A
额定电流Max 7.5 A
工作温度Max 55 ℃
额定电压 2.5 kV
安装方式 Panel
长度 72.4 mm
外壳颜色 Red
颜色 Red
触点材质 Brass
绝缘材质 PVC
产品生命周期 Active
包装方式 Bulk
制造应用 Test & Measurement, 测试与测量
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8536694050
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
3561-2 Pomona Electronics | 当前型号 | 当前型号 |
205-103 Abbatron | 功能相似 | 3561-2和205-103的区别 |
