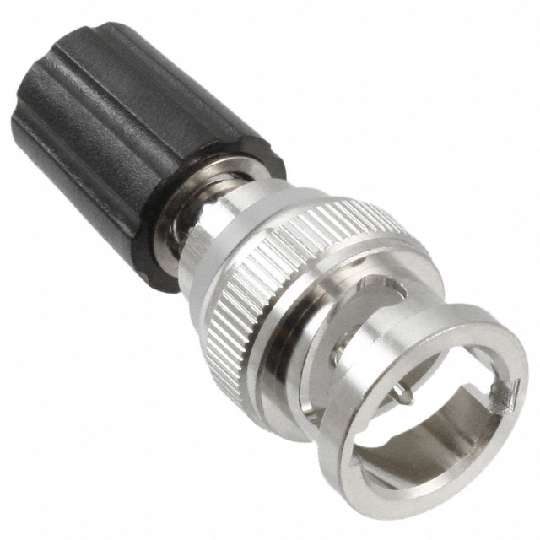

POMONA 3430-0 连接适配器, BNC
Brass Per QQ-B-626, Allow 360, 1/2 Hard Body, Adapter - Binding Post To BNC Male
Permits single banana plug to be used with equipment having a BNC female.- .
- * Upper:** Binding post with captive thumb nut. Brass, nickel plated. Accepts standard banana plugs. ** Insulation:** Polycarbonate. ** Lower:** BNC Male. ** Impedance:** 50 ohms. ** Rating. Operating Voltage:** 500 V RMS max., +115°C +239°F max.
得捷:
ADAPT BNC PLUG TO BIND POST BLK
e络盟:
连接器适配器, 黑色, 接线柱, 1 路, BNC 同轴, 1 路, 插头
艾睿:
In order to perform at an optimum level, cables and wires for high-reliability applications should be fitted with this specially engineered bnc-binding post adapter 3430-0 connector accessory from Pomona. This PL connector has 2 / 1 PL contacts. It has a plug type gender. It has a straight body orientation. This product is 39.37 mm long and 11.18 mm. This part has a maximum operating temperature of 115 °C.
Allied Electronics:
Adapter; BNC; BNC Male; 30 VAC⁄ 60 VDC Max.; Black; +115 ° C Max.
Verical:
Conn BNC-Binding Post Adapter PL 2/1 POS ST
Newark:
# POMONA 3430-0 Connector Adaptor, BNC Coaxial, 1 Positions, Plug, Binding Post, 1 Positions
MASTER:
BNC-Binding Post Adapter PL 2/1 POS ST
Electro Sonic:
BNC-Binding Post Adapter PL 2/1 POS ST
