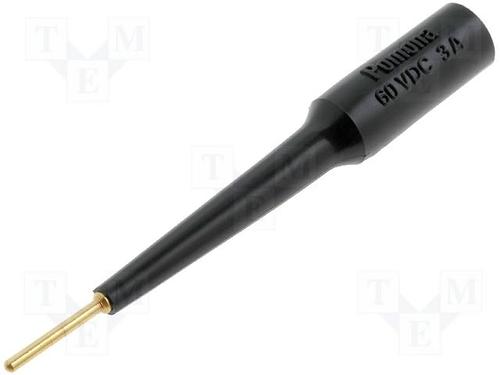

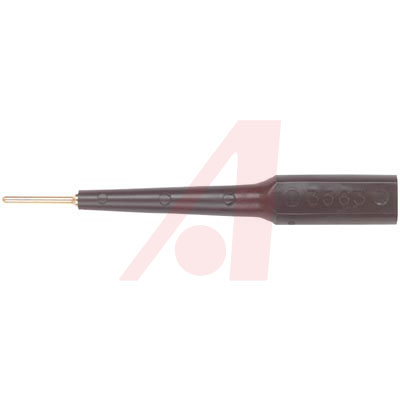

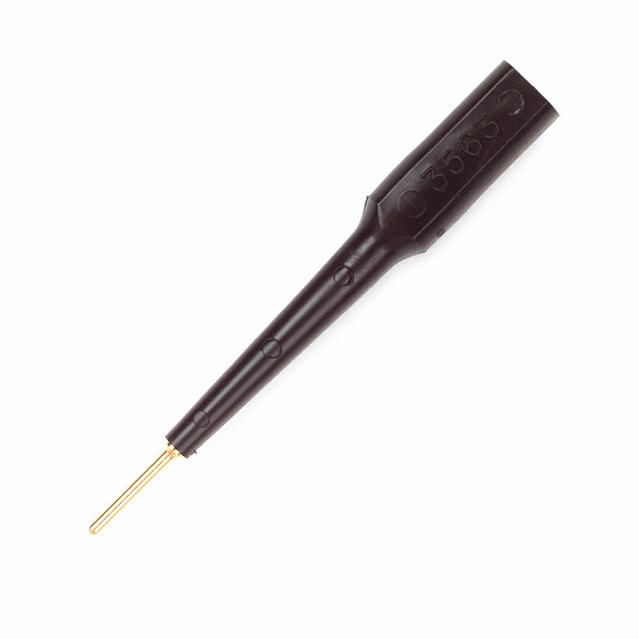

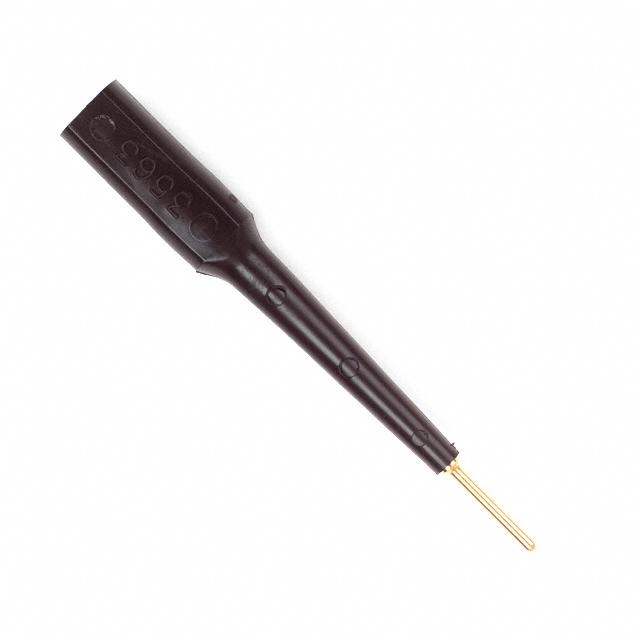

POMONA 3563-0 转接头, 4MM至1.6MM插针 黑色
The is a Banana Jack to 16AWG Pin Adapter with gold-plated brass contacts. It is ideal for rapid testing of the hard-to-get to sockets of multi-socket connectors. The 3563-0 comes with black polyvinyl chloride PVC insulation. Flexible tip allows testing of adjacent contacts.
- .
- Full insulation protects against shorting or contact damage
- .
- Brass body with tin plated finish
- .
- 55°C Maximum operating temperature
触点数 1
极性 Male
线规 16.0 AWG
触点电镀 Gold, Gold over Nickel
额定电压DC 2.50 kV
额定电流 13 A
额定电流Max 13 A
工作温度Max 55 ℃
额定电压 2.5 kV
安装方式 Panel
颜色 Black
触点材质 Brass
绝缘材质 PVC
产品生命周期 Active
制造应用 测试与测量, Test & Measurement
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8536694050
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
3563-0 Pomona Electronics | 当前型号 | 当前型号 |
3563-2 Pomona Electronics | 类似代替 | 3563-0和3563-2的区别 |
