POMONA 3563-2 连接器适配器, 香蕉, 1 路, 插座, 插座头, 1 路

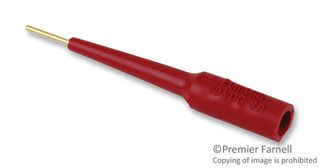

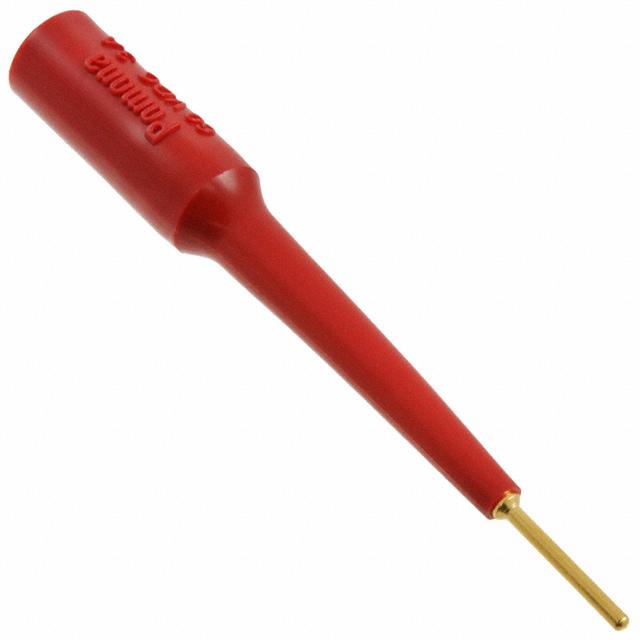

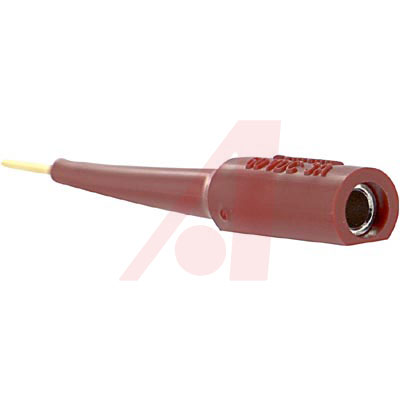

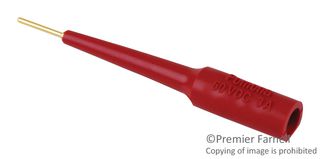

The is a Banana Jack to 16AWG Pin Adapter with gold-plated brass contacts. It is ideal for rapid testing of the hard-to-get to sockets of multi-socket connectors. The 3563-2 comes with red polyvinyl chloride PVC insulation. Flexible tip allows testing of adjacent contacts.
- .
- Full insulation protects against shorting or contact damage
- .
- Brass body with tin plated finish
- .
- 55°C Maximum operating temperature
触点数 1
极性 Male
线规 16.0 AWG
触点电镀 Gold over Nickel, Gold
额定电压DC 2.50 kV
额定电流 13 A
额定电流Max 13 A
工作温度Max 55 ℃
额定电压 2.5 kV
安装方式 Panel
颜色 Red
触点材质 Brass
绝缘材质 PVC
产品生命周期 Active
包装方式 Bulk
制造应用 Test & Measurement, 测试与测量
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8536694050
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
3563-2 Pomona Electronics | 当前型号 | 当前型号 |
3563-0 Pomona Electronics | 类似代替 | 3563-2和3563-0的区别 |
