Conn Shrouded Header HDR 5POS 2.54mm Solder ST SMD T/R
05P MTA100 HDR ASSY,SM,SN, LF
得捷:
05P MTA100 HDR ASSY,SM,SN, LF
艾睿:

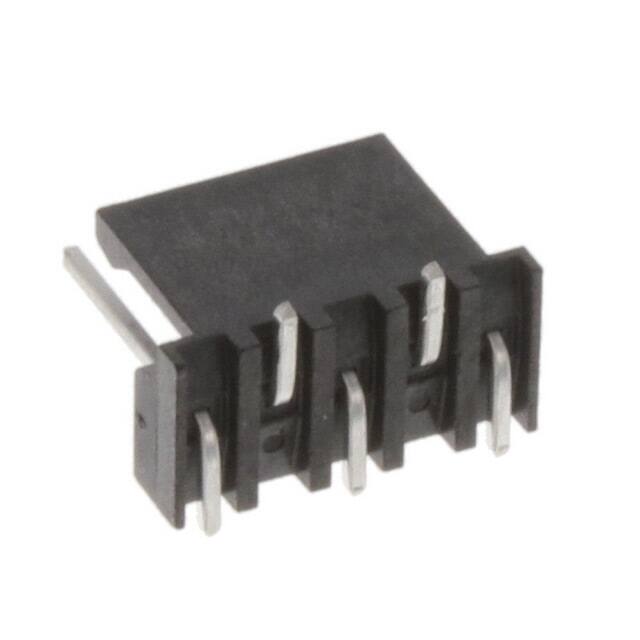

Reduce safety concerns with this shrouded 3-647502-5 header connector from TE Connectivity which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This HDR connector&s;s 5 contacts that are made out of copper alloy and plated with tin. It has a header type gender. This is a 1-row connector. Its pitch is 2.54 mm. It has a straight body orientation. It has a maximum voltage rating of 250 VAC. This device has a maximum current rating of 5 A/contact. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This connector has an operating temperature of -55 to 105 °C. It uses the solder termination method. This product is 12.7 mm long, 10.55 mm tall and 8.08 mm deep. 3-647502-5 is housed in black nylon 4/6.
安富利:
Conn Shrouded Header HDR 5 POS 2.54mm Solder RA SMD T/R
Verical:
Conn Shrouded Header HDR 5 POS 2.54mm Solder ST SMD T/R
Online Components:
05P MTA100 HDR ASSY,SM,SN, LF
触点数 5
触点电镀 Tin
工作电压 250 VAC
排数 1
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 5
额定电流Max 5A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 250 VAC
安装方式 Surface Mount
高度 10.55 mm
外壳颜色 Black
触点材质 Copper Alloy
外壳材质 Nylon 4/6
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
